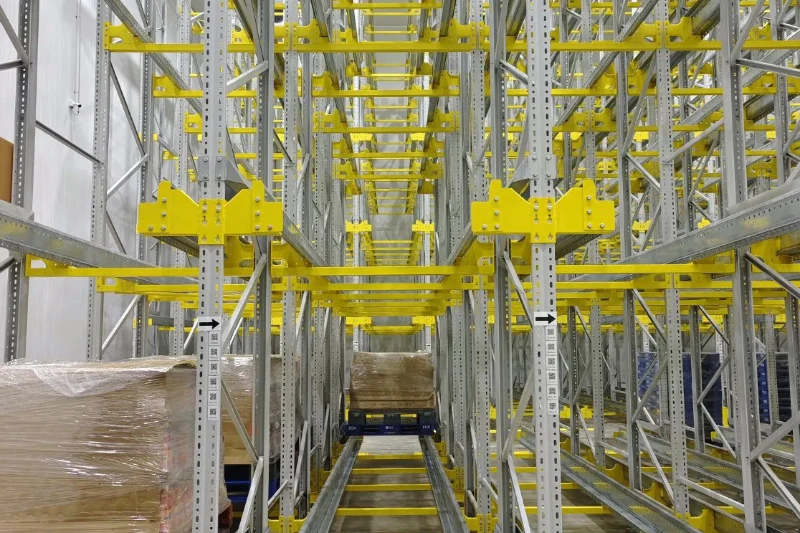

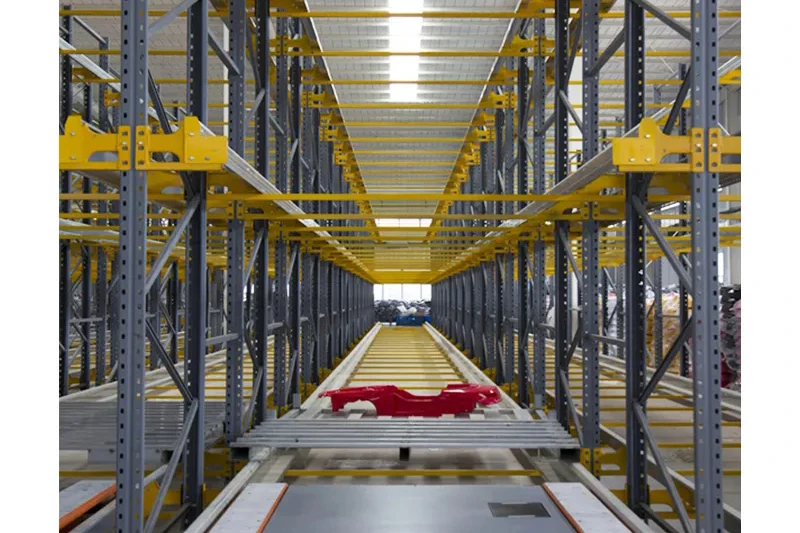

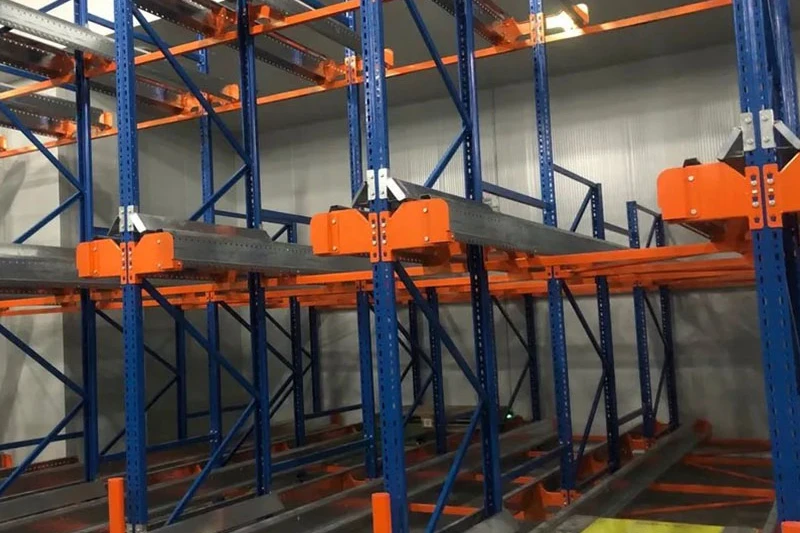

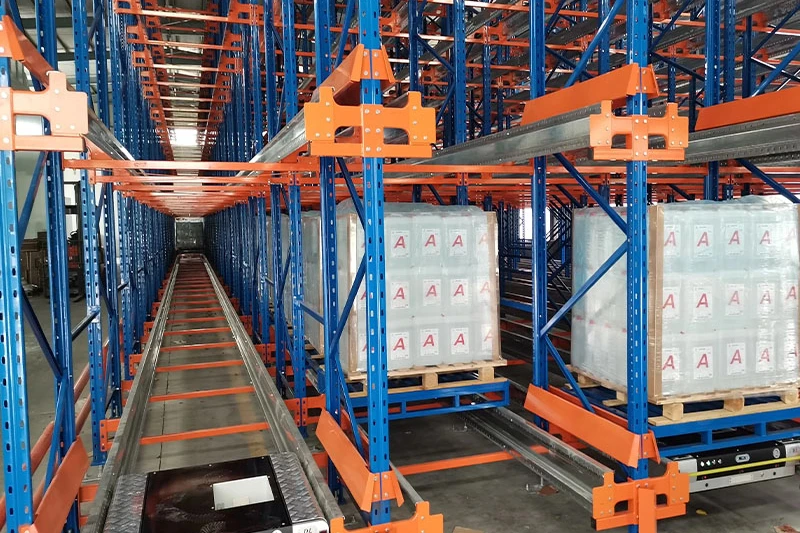

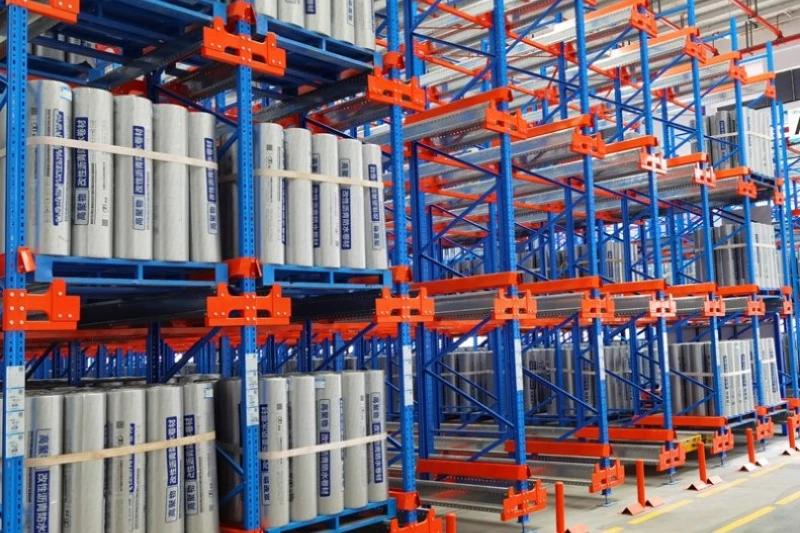

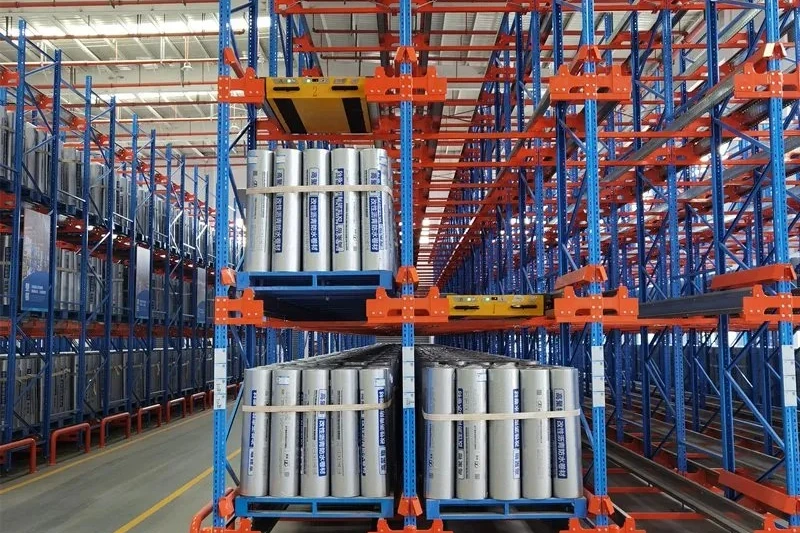

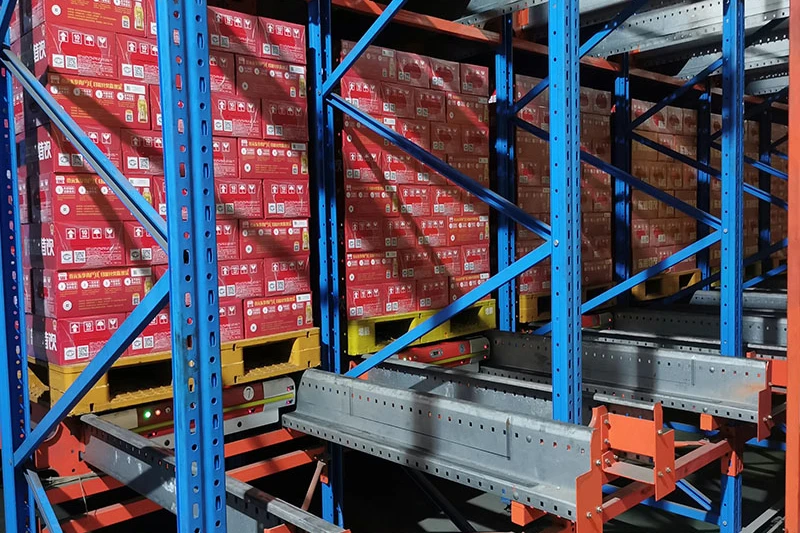

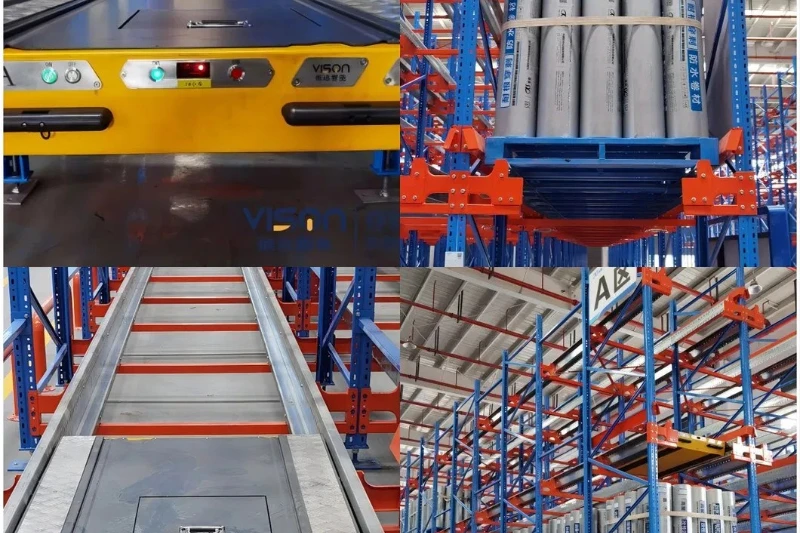

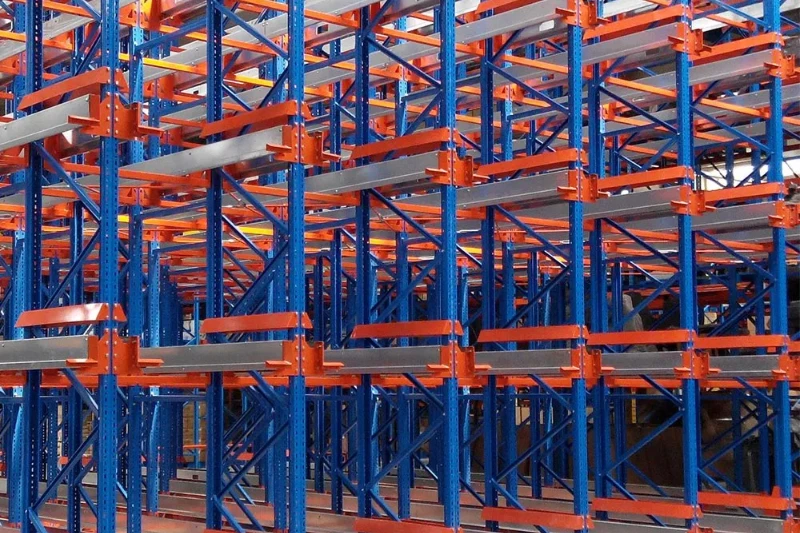

Radio Shuttle Pallet Racking (2-Way Shuttle Racking)
Radio Shuttle Pallet Racking, also known as 2-Way Shuttle Racking System, is a high-density pallet storage solution designed for warehouses that require maximum space utilization and efficient pallet handling. By using a battery-powered radio shuttle cart to move pallets automatically inside the rack lanes, this system significantly reduces forklift travel and improves warehouse operating efficiency.
Ideal for cold storage facilities, food & beverage warehouses, manufacturing plants, and distribution centers with large quantities of similar SKUs, Radio Shuttle Pallet Racking provides a compact storage layout while maintaining reliable inventory control and fast pallet movement.
Unlike traditional drive-in racking, the shuttle system allows operators to load and retrieve pallets more efficiently, making it an excellent choice for high-density storage applications where space optimization and productivity are critical.
Configuration & Flexibility
Our Radio Shuttle Pallet Racking systems are engineered with heavy-duty steel structures and customized according to warehouse dimensions, pallet specifications, load requirements, and operational processes.
The system consists of pallet racks, shuttle carts, guide rails, and control systems. The radio shuttle moves pallets automatically within each storage lane, while forklifts only need to operate at the rack entrance, reducing handling time and improving warehouse safety.
Available in single-entry and double-entry configurations, the system can be designed for different warehouse layouts and storage strategies. Rack depth, lane length, number of pallet positions, and shuttle quantity can be customized to meet specific project requirements.
Radio Shuttle Racking supports both FIFO (First-In, First-Out) and LIFO (Last-In, First-Out) inventory management methods, making it suitable for various industries including cold chain logistics, manufacturing, wholesale distribution, and third-party logistics.
Key Benefits
High-density pallet storage with maximum space utilization
Reduced forklift operation inside rack aisles
Automatic pallet movement for improved warehouse efficiency
Suitable for large-volume and similar SKU storage
Supports FIFO and LIFO inventory management methods
Improved warehouse safety by reducing manual handling operations
Heavy-duty steel construction for long-term industrial use
Ideal solution for cold storage and temperature-controlled warehouses
Flexible rack design with customized dimensions and configurations
Radio Shuttle Pallet Racking Specifications
Load Capacity
Each pallet position typically supports 500 kg to 2,000 kg or more, depending on rack design, upright frame structure, beam size, and project requirements. Heavy-duty customized systems are available for higher pallet loads and special industrial applications.
Rack Height
Standard rack heights generally range from 2,000 mm to 12,000 mm and can be customized according to warehouse clear height, sprinkler system requirements, and available storage space.
Rack Depth / Storage Lane Length
Storage lane depth can be designed according to pallet quantity requirements. Multiple pallet positions can be configured in one lane to maximize storage density while maintaining efficient shuttle operation.
Pallet Positions
Each storage lane can accommodate multiple pallets. The number of pallet positions can be customized based on warehouse layout, inventory volume, and storage density requirements.
Material
High-strength structural steel (Q235B / Q355 grade optional) is used for uprights, beams, and supporting components, ensuring excellent load-bearing performance and long service life in industrial warehouse environments.
Surface Finish
Durable electrostatic powder coating finish is commonly applied for indoor warehouse applications. Hot-dip galvanized treatment is also available for cold storage, humid environments, and applications requiring enhanced corrosion resistance.
Configuration Options
Single-Entry Radio Shuttle Racking
Double-Entry Radio Shuttle Racking
Multi-Deep Pallet Storage Configuration
Cold Storage Shuttle Racking System
Customized Rack Height and Lane Depth
Integrated Shuttle Cart Storage System
Compatibility
Compatible with:
Radio shuttle carts
Counterbalance forklifts
Reach trucks
Pallet handling equipment
Standard Euro pallets (1200×800 mm)
US pallets (48"×40")
Customized pallet sizes available
Inventory Management
Supports both:
FIFO (First-In, First-Out)
LIFO (Last-In, Last-Out)
Automation Compatibility
Radio Shuttle Pallet Racking can be integrated with modern warehouse automation systems and warehouse management processes. The shuttle carts can be controlled remotely to improve pallet handling efficiency and reduce labor requirements.
Compatible with:
Warehouse Management Systems (WMS)
Remote shuttle control systems
Automated storage processes
High-density warehouse operations
Standards
Designed and manufactured according to international warehouse racking safety requirements, including FEM and EN standards. Customized designs and technical documentation are available based on project requirements and regional regulations.
Common Applications
Cold Storage Warehouses
Food & Beverage Storage Facilities
3PL Logistics Distribution Centers
Manufacturing Warehouses
Chemical Industry Warehouses
Wholesale Distribution Centers
High-Density Pallet Storage Facilities
Radio Shuttle Pallet Racking – FAQ
What is radio shuttle pallet racking used for?
Radio Shuttle Pallet Racking is mainly used for high-density pallet storage in warehouses, distribution centers, and cold storage facilities. It is especially suitable for businesses that need to store large quantities of similar products while improving storage capacity and operational efficiency.
What is the difference between radio shuttle racking and drive-in racking?
Both systems are designed for high-density storage, but Radio Shuttle Racking uses a motorized shuttle cart to move pallets inside the rack lanes. This reduces forklift movement and improves loading efficiency, safety, and inventory control compared with traditional drive-in racking.
How much weight can a radio shuttle racking system hold?
The load capacity depends on rack structure, pallet size, beam specifications, and warehouse requirements. Standard systems typically support 500 kg to 2,000 kg per pallet position, while customized heavy-duty solutions can be designed for higher loads.
Can radio shuttle racking be used in cold storage warehouses?
Yes. Radio Shuttle Pallet Racking is widely used in cold storage applications because it maximizes storage capacity in limited spaces and reduces forklift operation time inside temperature-controlled environments.
Can radio shuttle racking be customized for different warehouses?
Yes. As a professional warehouse racking manufacturer, Ouglon provides customized shuttle racking solutions based on warehouse dimensions, pallet specifications, storage capacity, and operational requirements.
Why Choose Ouglon Pallet Racking?
Ouglon Radio Shuttle Pallet Racking is manufactured for customers who need reliable, high-density, and cost-effective warehouse storage solutions.
With our own production facilities and experienced engineering team, we provide customized rack structures, shuttle-compatible designs, quality steel components, and complete warehouse storage solutions for global customers.
Need a warehouse layout or high-density pallet storage solution? Contact our engineering team for a free design proposal.
