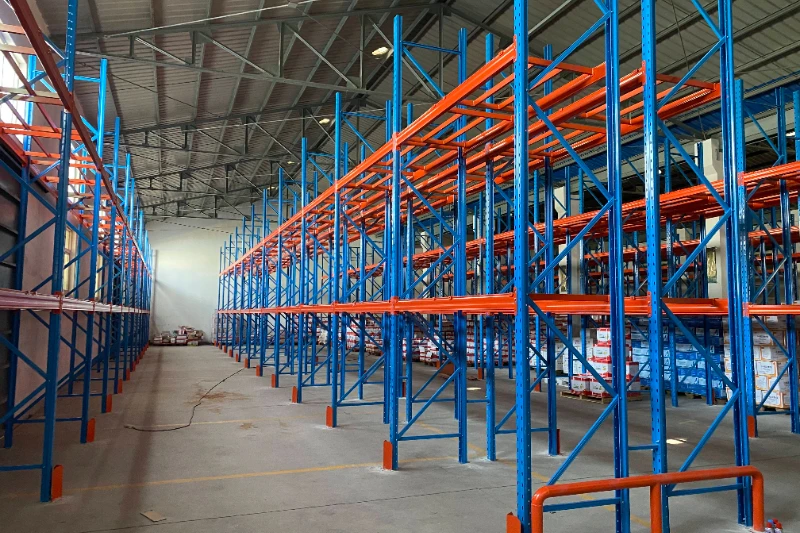

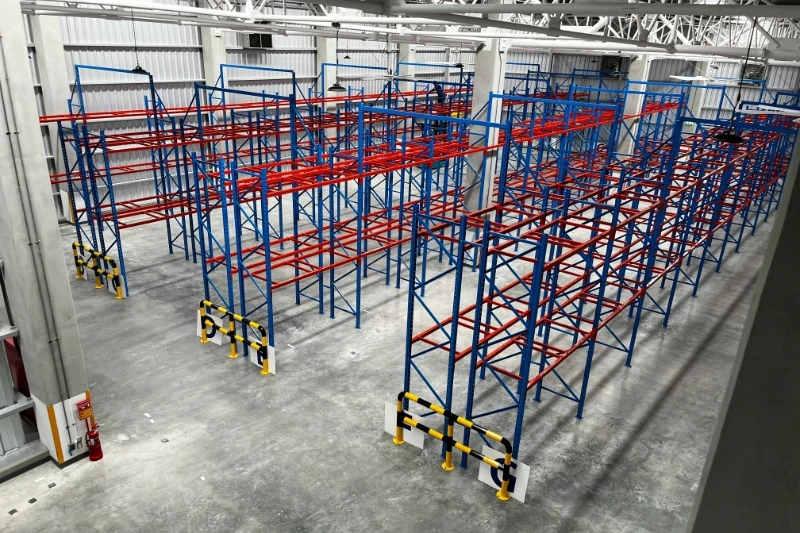

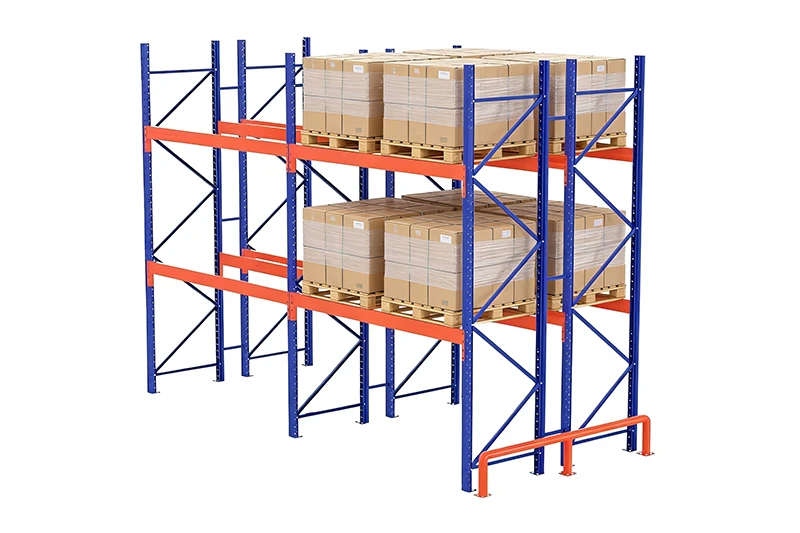

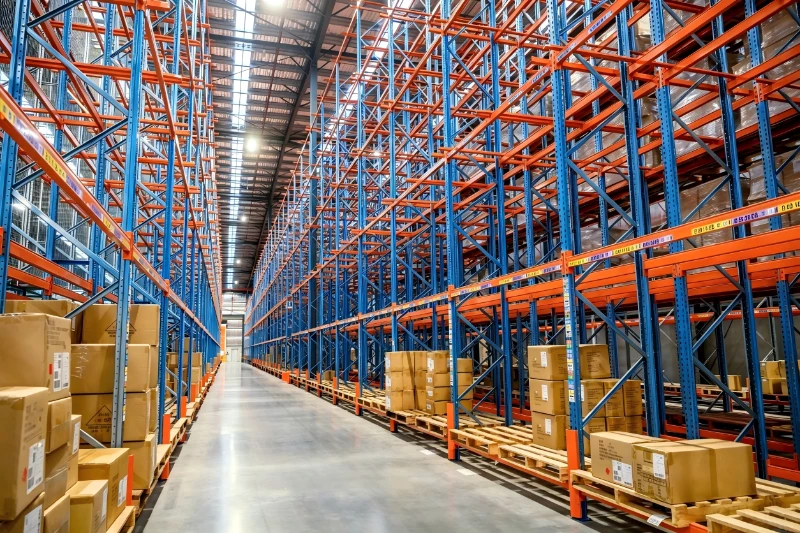

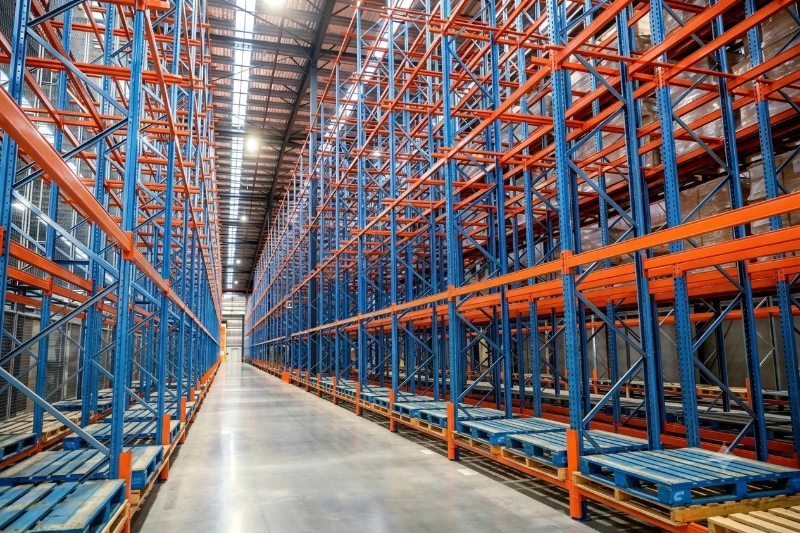

Selective Pallet Racking
Selective Pallet Racking, also known as Standard Pallet Racking, is the go-to storage solution for modern distribution centers, logistics hubs, and industrial warehouses. Designed for direct access to every pallet, this system helps maximize vertical storage space while maintaining efficient inventory handling.
Ideal for warehouses with high-turnover inventory and mixed SKUs, Selective Pallet Racking provides flexible storage layouts for a wide range of operational requirements.
Configuration & Flexibility
Our Selective Pallet Racking systems are available in both Single-Deep and Double-Deep configurations. Aisle widths can be customized to suit standard forklifts, reach trucks, and different warehouse layouts.
The adjustable beam levels allow easy reconfiguration for pallets of varying sizes, heights, and load capacities, making the system highly adaptable as storage requirements evolve.
This cost-effective warehouse storage solution supports both FIFO (First-In, First-Out) and LIFO (Last-In, Last-Out) inventory management methods and is widely used in e-commerce, manufacturing, 3PL logistics, retail, and food storage applications.
Key Benefits
Fast installation, expansion, and relocation
Heavy-duty steel construction for industrial applications
Suitable for high-turnover inventory storage
100% direct access to every pallet
Optimized vertical warehouse space utilization
Adjustable beam heights for flexible storage configurations
Compatible with standard forklifts and pallet types

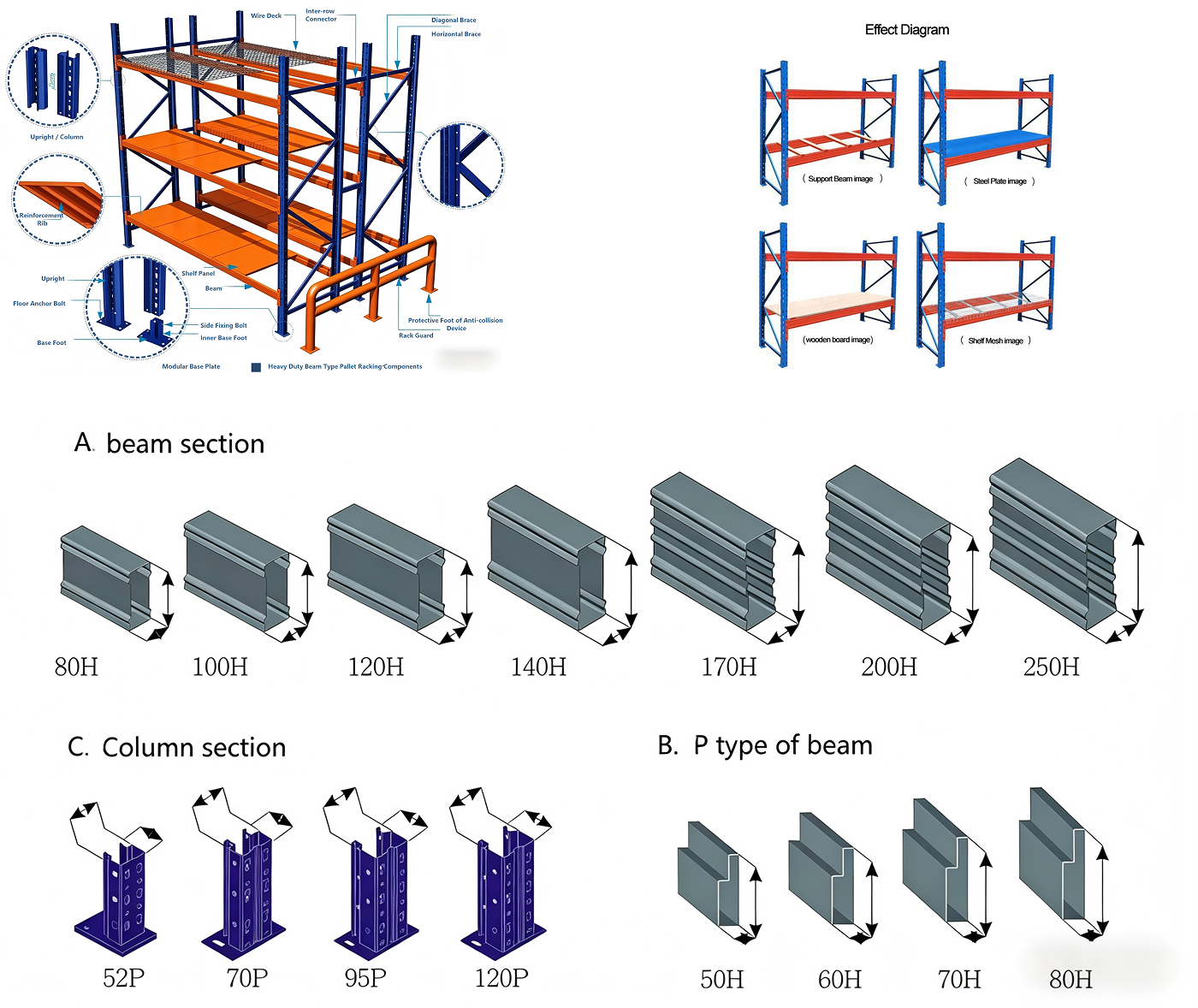

Selective Pallet Racking Specifications
Load Capacity
Beam load capacity typically ranges from 500 kg to 5,000 kg per level, depending on rack configuration, beam size, and upright frame design. Heavy-duty customized systems are available for higher load requirements.
Rack Height
Standard upright heights range from 2,000 mm to 12,000 mm, and can be customized based on warehouse clear height and storage requirements.
Beam Length
Common beam lengths range from 1,200 mm to 3,600 mm, designed to accommodate standard Euro pallets and US pallets.
Beam Levels
Adjustable beam levels with 50 mm or 75 mm pitch adjustment, allowing flexible storage for different pallet heights.
Material
High-tensile structural steel (Q235B / Q355 grade optional), engineered for industrial warehouse applications.
Surface Finish
Durable electrostatic powder coating or hot-dip galvanized finish for corrosion resistance and long service life.
Configuration Options
Single-Deep Selective Racking
Double-Deep Selective Racking
Back-to-Back Installation
Narrow Aisle / Standard Aisle Layout
Compatibility
Compatible with:
Standard forklifts
Reach trucks
Pallet jacks
Euro pallets (1200×800 mm)
US pallets (48"×40")
Inventory Management
Supports both:
FIFO (First-In, First-Out)
LIFO (Last-In, Last-Out)
Standards
Designed and manufactured in compliance with international warehouse racking safety standards, including FEM and EN norms (custom compliance available upon request).
Common Applications

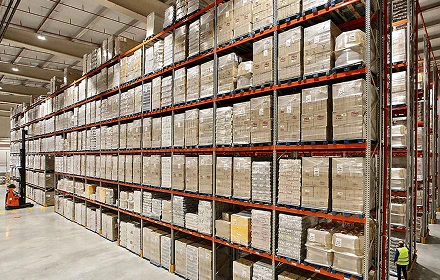

Logistics & 3PL Warehouses

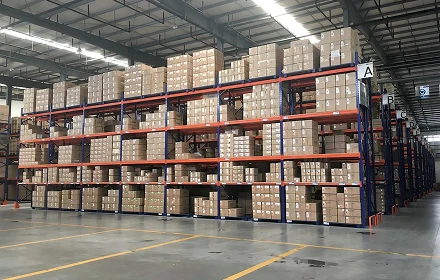

E-commerce Fulfillment Centers

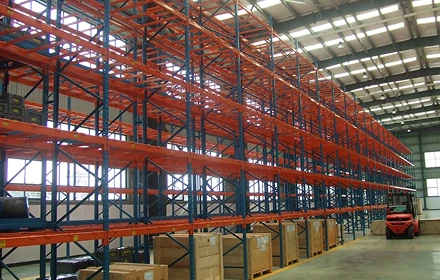

Manufacturing Facilities

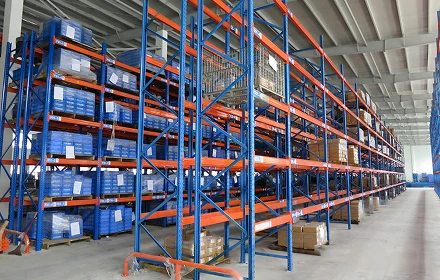

Food & Beverage Warehouses

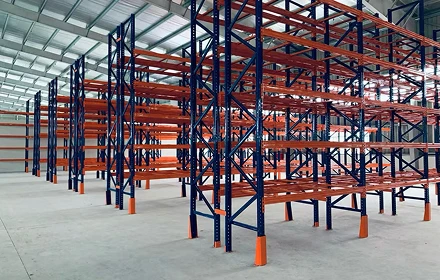

Cold Storage Facilities

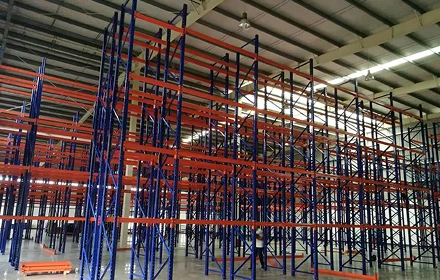

Retail & Wholesale Distribution Centers

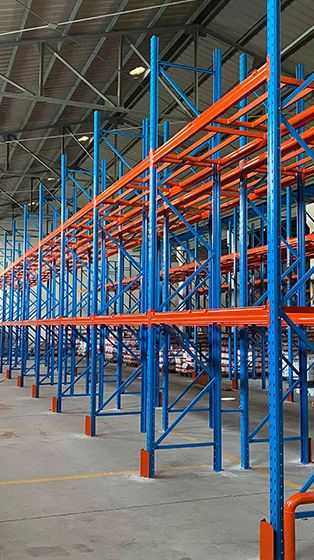

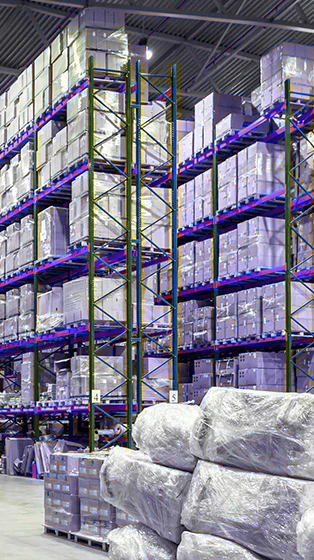

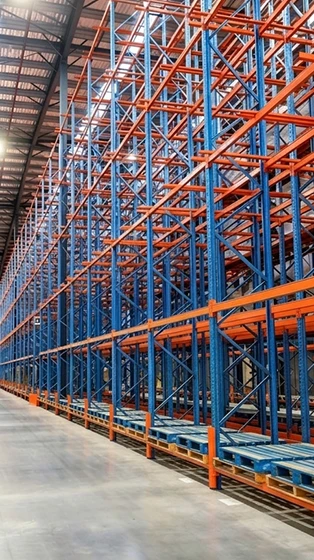

Application Video
Ideal for warehouses with high-turnover inventory and mixed SKUs, Selective Pallet Racking provides flexible storage layouts for a wide range of operational requirements.
Selective Pallet Racking – FAQ
What is selective pallet racking used for?
Selective pallet racking is commonly used in warehouses and distribution centers that store a wide variety of products with high turnover. It provides direct access to every pallet, making it ideal for facilities that require fast picking, efficient stock rotation, and flexible storage layouts.
How much weight can selective pallet racking hold?
Load capacity typically ranges from 500 kg to 5,000 kg per beam level, depending on beam size, upright frame design, and warehouse configuration. Heavy-duty systems can be engineered for higher load requirements based on project needs.
What is the difference between selective racking and other pallet racking systems?
Selective pallet racking offers 100% direct access to every pallet, while systems like drive-in or push-back racking prioritize storage density over accessibility. This makes selective racking the most flexible and widely used solution for warehouses handling multiple SKUs.
Can selective pallet racking be adjusted or expanded later?
Yes. Selective pallet racking is a fully modular system. Beam levels can be easily adjusted, and additional bays can be added as storage needs grow. This makes it a scalable solution for warehouses with changing inventory requirements.
What type of forklifts are compatible with selective pallet racking?
Selective pallet racking is compatible with most standard material handling equipment, including counterbalance forklifts and reach trucks. The aisle width can be designed based on your forklift type and warehouse layout requirements.

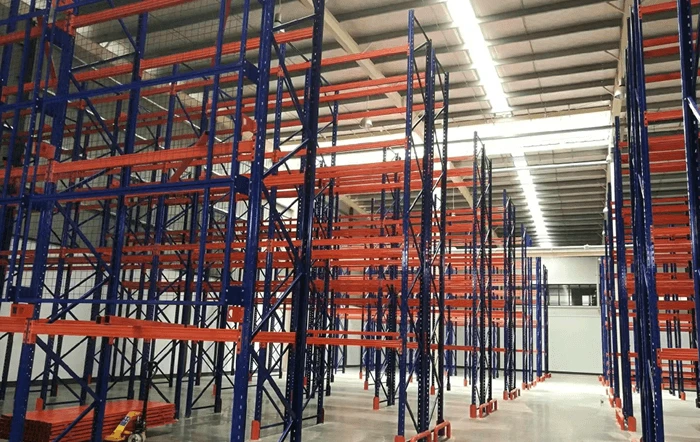

Why Choose Ouglon Pallet Racking?
Ouglon Pallet Racking specializes in the manufacturing of reliable and cost-effective warehouse storage systems for global industrial applications.
Our Selective Pallet Racking systems are manufactured from high-quality steel materials and engineered to comply with international safety and quality standards. We provide customized rack dimensions, OEM/ODM services, engineering support, warehouse layout planning, and reliable worldwide shipping.
Need a warehouse layout or racking solution? Contact our engineering team for a free design proposal.
