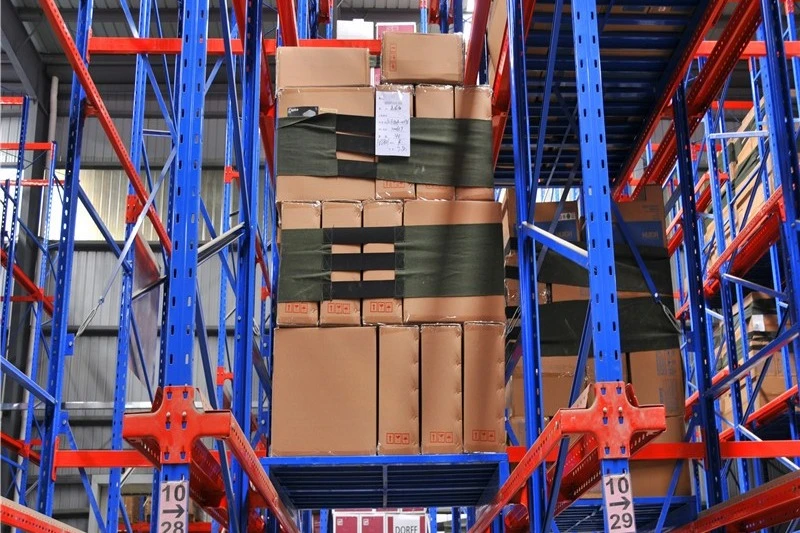

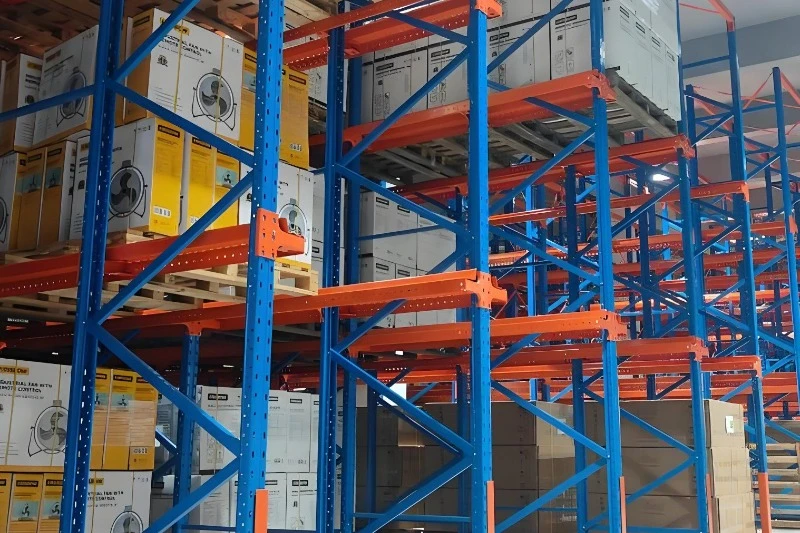

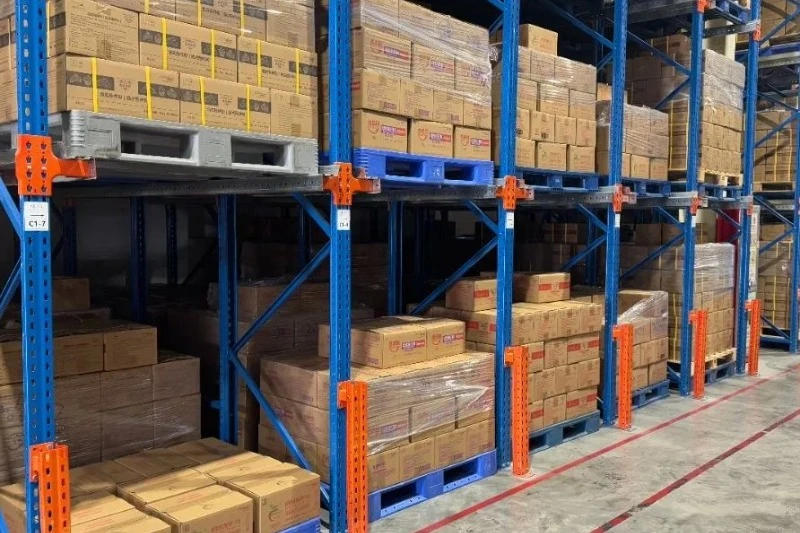

Drive-In Pallet Racking
Drive-In Pallet Racking is a high-density warehouse storage system designed for storing large quantities of similar products with low SKU variety. By eliminating multiple working aisles, the system maximizes storage capacity and makes full use of available warehouse space.

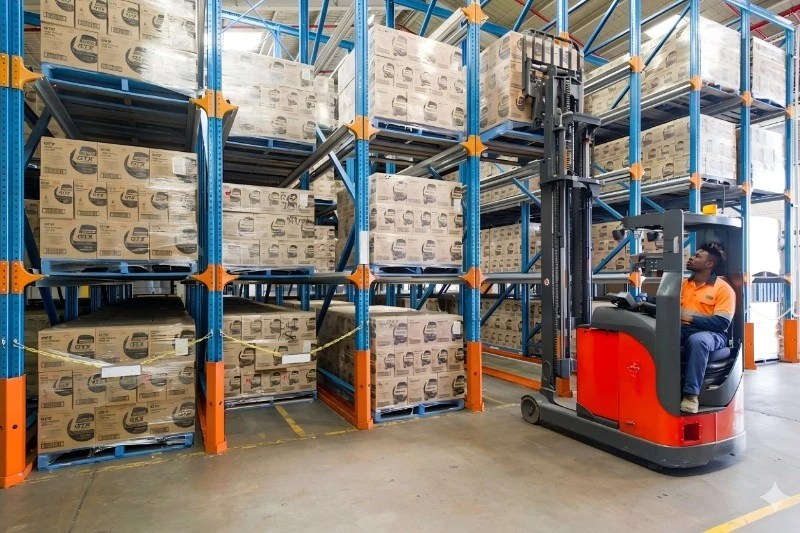

In a Drive-In configuration, forklifts enter directly into the storage lanes to load and retrieve pallets. This compact storage design is widely used in cold storage facilities, food warehouses, manufacturing plants, and bulk inventory operations where storage density is a priority.
Drive-In Racking is particularly suitable for LIFO (Last-In, First-Out) inventory management and warehouses handling palletized goods in large volumes.
Configuration & Flexibility
Our Drive-In Racking systems are available in single-entry and double-entry configurations, depending on warehouse layout and operational requirements.

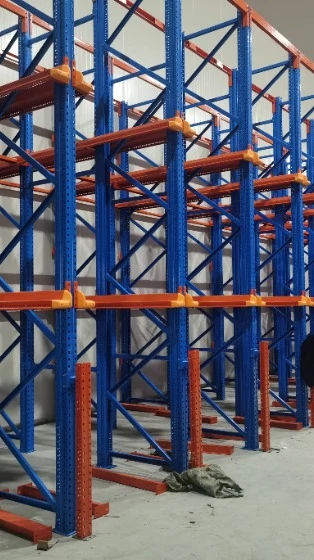

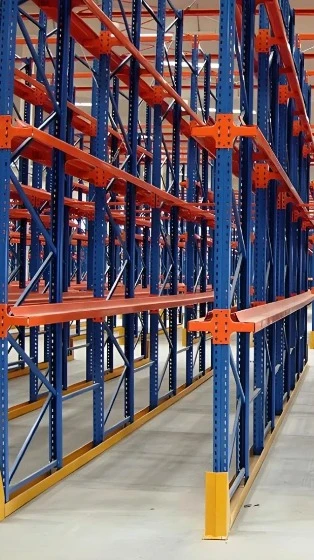

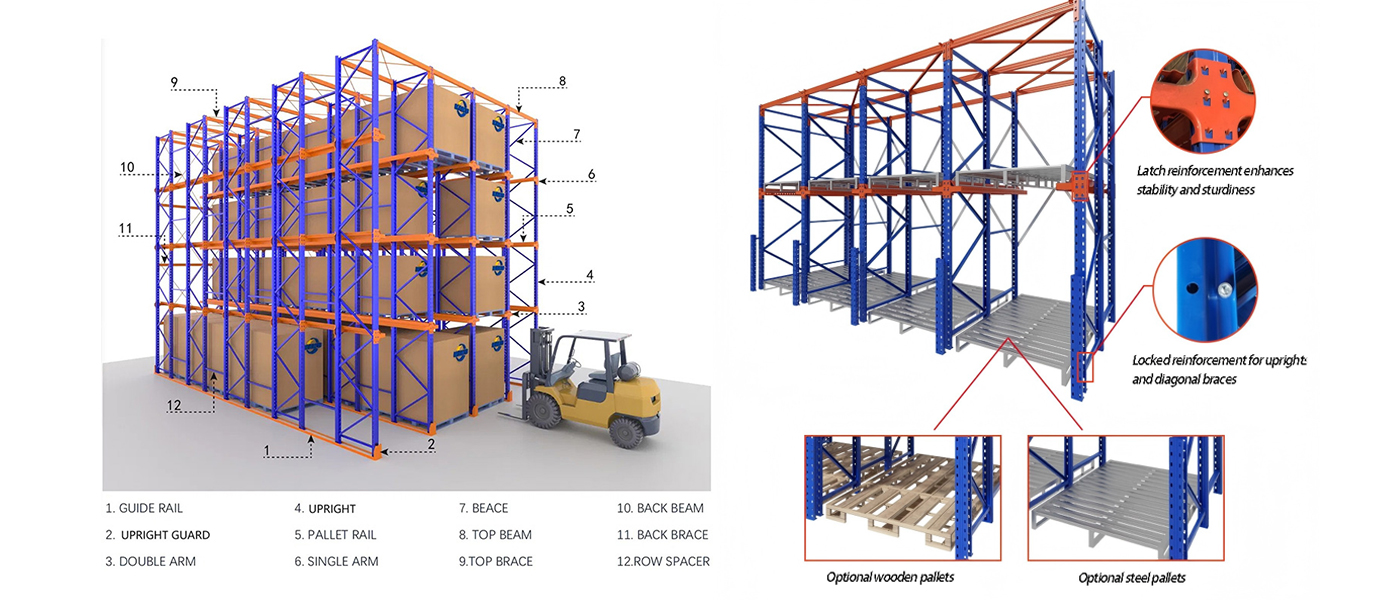

The system uses deep storage lanes with pallet support rails mounted on both sides, allowing forklifts to drive directly into the rack structure for pallet handling.
Compared with standard selective pallet racking, Drive-In systems can significantly reduce aisle space and increase storage density by up to 60%–80%.
This makes it an efficient storage solution for warehouses with limited floor space and high-volume pallet storage requirements.
Key Benefits
High-density pallet storage system
Reduced aisle space requirements
Increased warehouse storage capacity
Ideal for bulk storage of similar products
Suitable for cold storage environments
Maximized cubic warehouse utilization
Cost-effective solution for high-volume inventory
Drive-In Pallet Racking Specifications
Load Capacity
Beam and rail load capacity typically ranges from 500 kg to 4,000 kg per pallet position, depending on rack structure, lane depth, and pallet dimensions. Heavy-duty configurations are available for industrial storage applications.
Rack Height

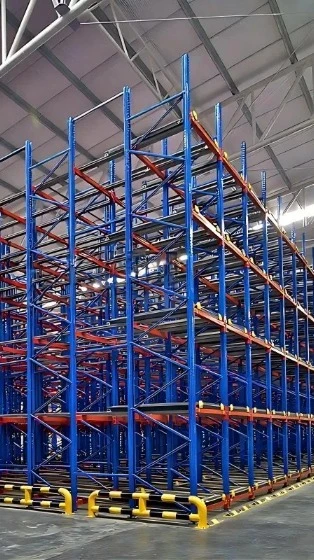

Standard rack heights range from 2,000 mm to 10,000 mm, with custom heights available for high-bay warehouse systems.
Lane Depth
Lane depth can be customized based on pallet quantity and warehouse layout, typically ranging from 2 to 10 pallets deep.
Beam Levels
Adjustable rail and beam levels allow flexible storage configurations for different pallet heights and load requirements.
Material
High-strength structural steel (Q235B / Q355 optional), designed for heavy-duty industrial warehouse environments.
Surface Finish
Electrostatic powder coating or hot-dip galvanized finish for corrosion resistance and long-term durability.
Configuration Options
Single-Entry Drive-In Racking
Double-Entry Drive-Through Racking
High-Density Deep Lane Storage
Cold Storage Racking System
Compatibility
Compatible with:
Counterbalance forklifts
Reach trucks
Standard pallets
Euro pallets (1200×800 mm)
US pallets (48"×40")
Inventory Management
Supports both:
LIFO (Last-In, First-Out) for Drive-In systems
FIFO (First-In, First-Out) for Drive-Through configurations
Standards
Designed in accordance with international warehouse safety standards, including FEM and EN norms. Custom engineering compliance available upon request.
Common Applications
Cold storage warehouses
Food & beverage distribution centers
Bulk inventory storage
Manufacturing facilities
Industrial raw material storage
High-volume logistics warehouses
Drive-In Racking – FAQ
What is drive-in pallet racking used for?
Drive-In pallet racking is used for high-density storage of large quantities of similar products. It is commonly used in warehouses where maximizing storage capacity is more important than direct access to every pallet.
What is the difference between drive-in and selective pallet racking?
Selective pallet racking provides direct access to every pallet, while drive-in racking stores pallets in deep lanes to maximize storage density. Drive-in systems reduce aisle space and are better suited for bulk storage operations.
Is drive-in racking suitable for cold storage warehouses?

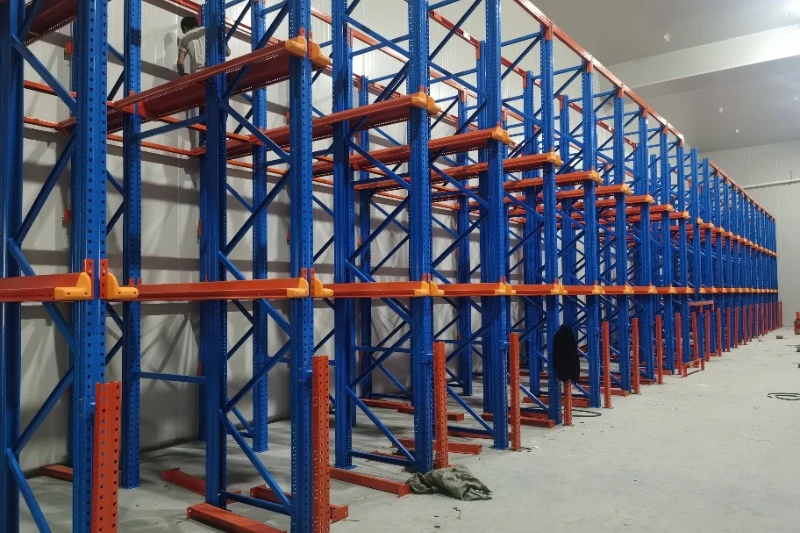

Yes. Drive-In Racking is widely used in cold storage and frozen food warehouses because its high-density layout helps reduce refrigerated space requirements and improves storage efficiency.
How deep can drive-in racking systems be?
Drive-In storage lanes are typically designed for 2 to 10 pallets deep, depending on warehouse layout, forklift operation, and inventory requirements.
What inventory management method does drive-in racking support?
Drive-In Racking mainly supports LIFO (Last-In, First-Out) inventory management. For FIFO operations, Drive-Through Racking configurations can be used instead.
Why Choose Ouglon Drive-In Racking
Ouglon Drive-In Racking systems are designed for warehouses that require high-density pallet storage and efficient space utilization. With years of manufacturing experience in industrial storage solutions, we provide reliable racking systems engineered for demanding warehouse environments.
Our Drive-In Racking structures are manufactured from high-quality structural steel and designed to ensure long-term durability, load stability, and operational safety. Every system can be customized based on pallet size, storage depth, warehouse layout, and forklift operation requirements.
Whether for cold storage facilities, food distribution centers, manufacturing plants, or bulk inventory warehouses, we provide practical storage solutions tailored to different industries and operational needs.
Need a customized Drive-In Racking solution? Contact our engineering team for a free warehouse layout proposal.
