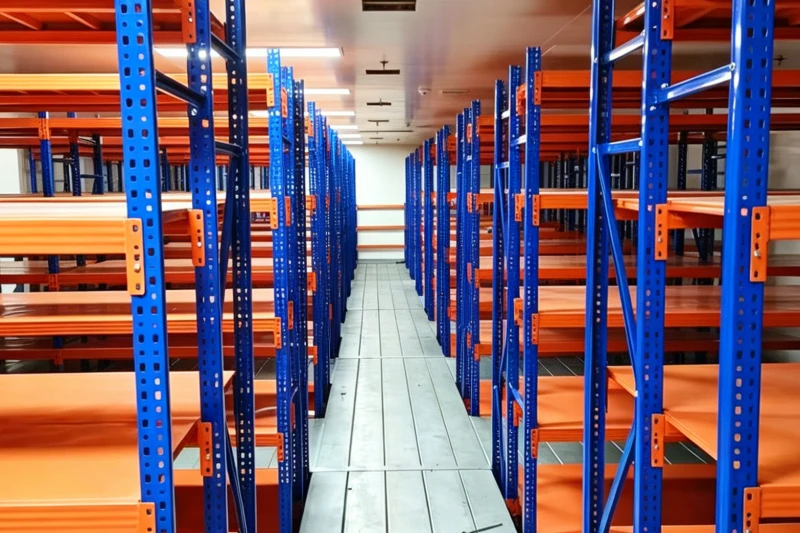

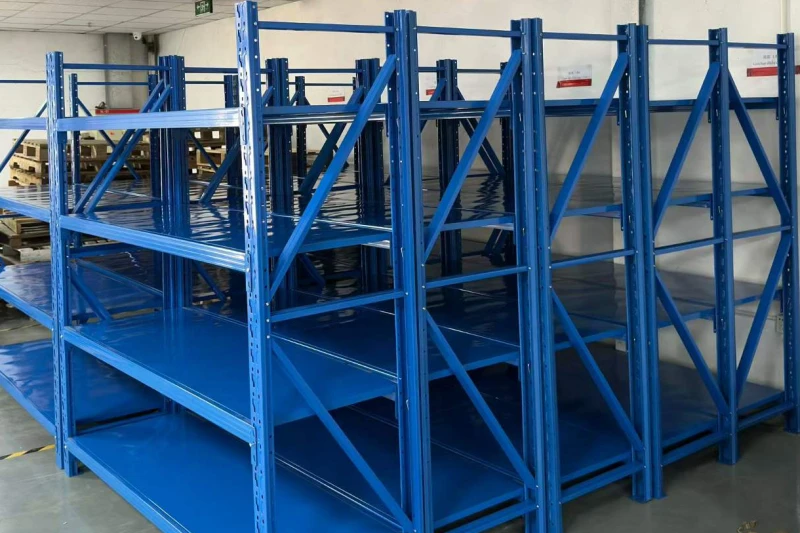

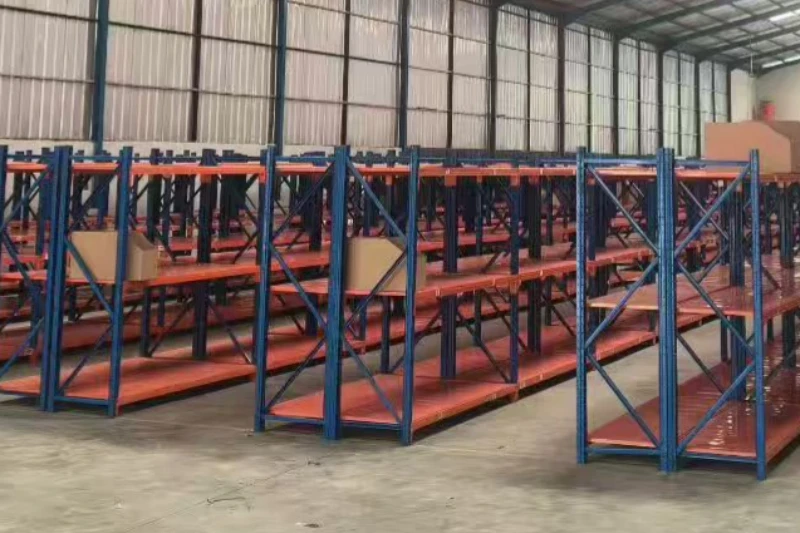

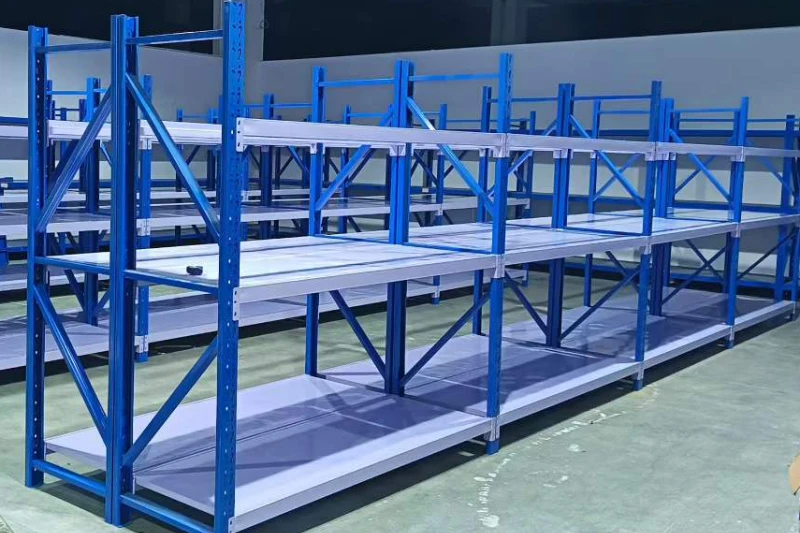

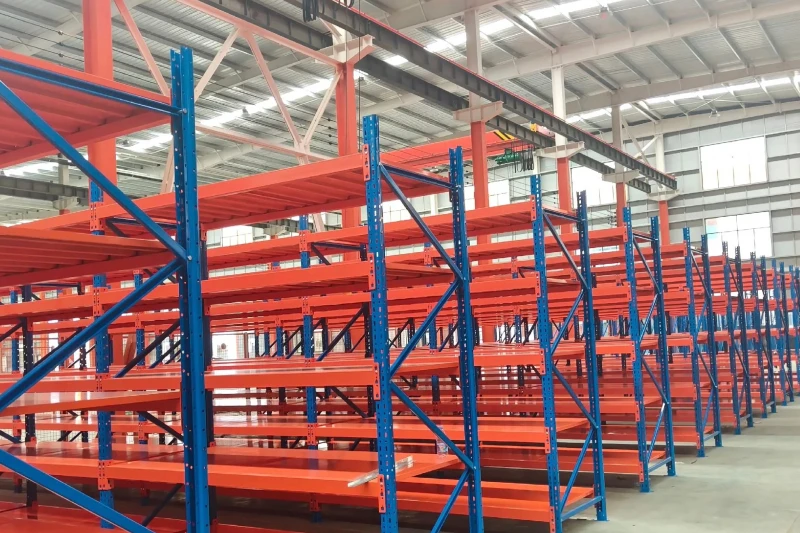

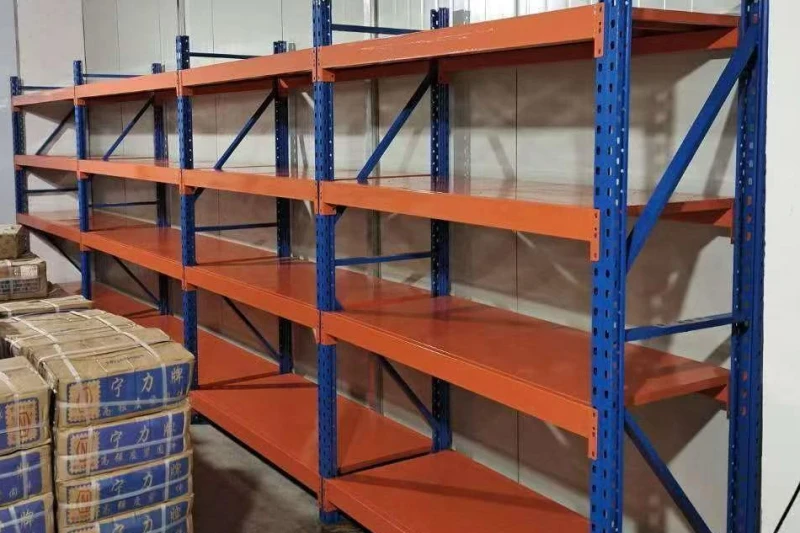

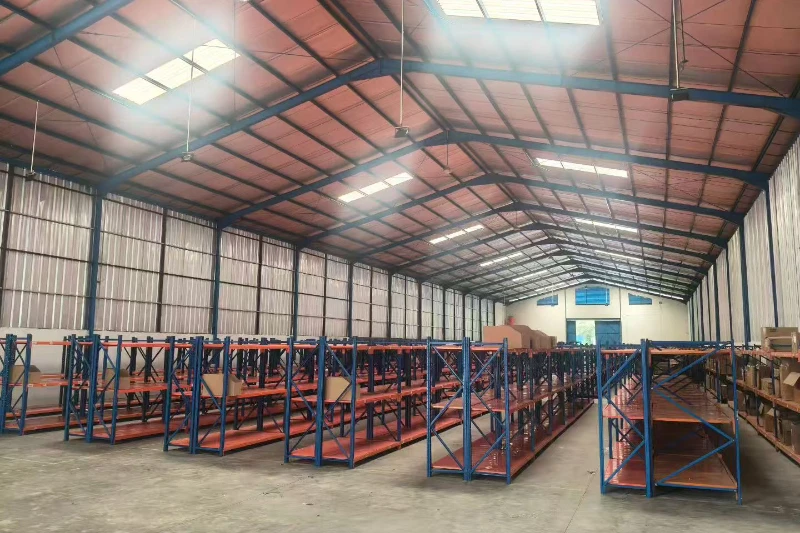

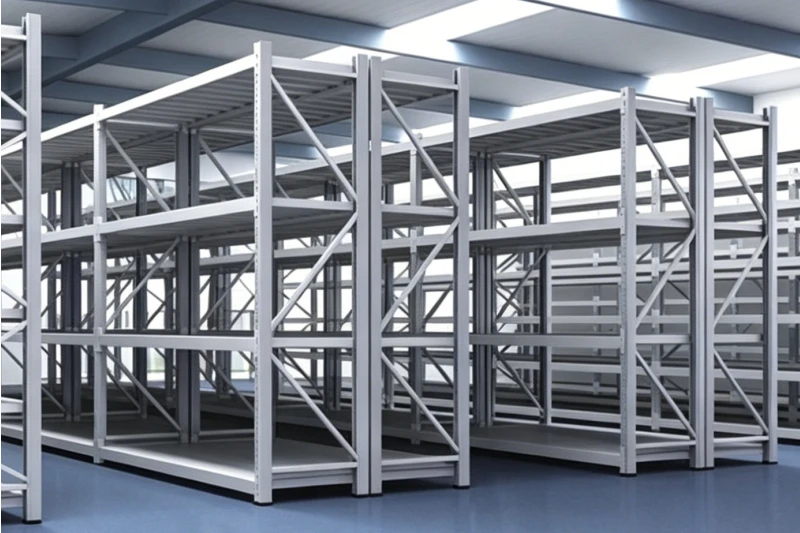

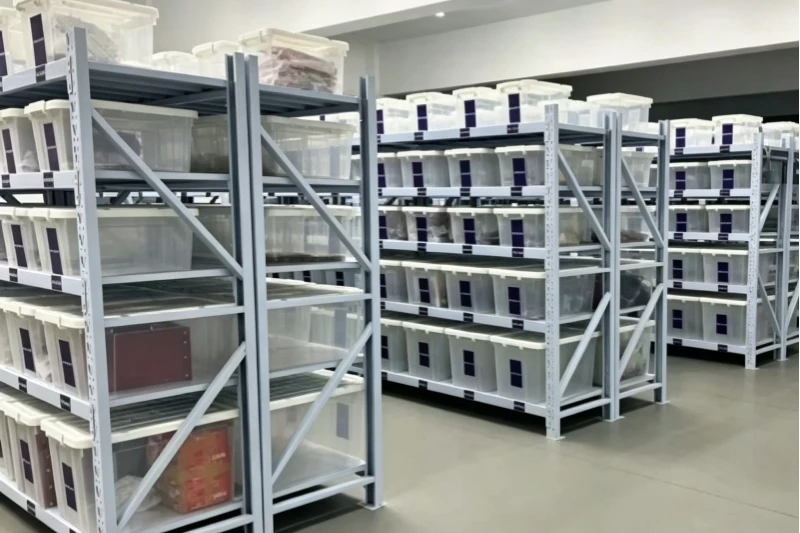

Multi-Tier Shelving Racking
Multi-Tier Shelving Racking is a multi-level warehouse storage system designed to make better use of vertical space while providing easy manual access to a large number of products and SKUs. By adding multiple shelving levels within the same warehouse footprint, the system creates additional usable storage space without requiring a larger floor area.
This type of shelving system is particularly suitable for warehouses with a high number of small and medium-sized items, especially where products are picked and handled manually rather than by palletized forklift operations. It can be used for cartons, spare parts, components, e-commerce products, tools, and other inventory that requires frequent access.
Multi-Tier Shelving Racking can be configured with open access levels, stairways, handrails, walkways, and different shelving systems to create a practical multi-level storage area. It is widely used in e-commerce fulfillment centers, manufacturing warehouses, spare parts warehouses, archives, and distribution facilities.
As a professional multi-tier shelving manufacturer in China, Ouglon provides customized systems based on warehouse height, floor loading conditions, product dimensions, storage capacity, and picking requirements.
Configuration & Flexibility
Our Multi-Tier Shelving Racking systems combine steel shelving with reinforced structural frames and elevated access levels to create multiple usable storage floors within the same warehouse space.
The number of tiers, rack height, shelf depth, bay width, walkway width, and access arrangement can be customized according to warehouse dimensions and operational requirements. Different shelving types can also be incorporated into the same multi-tier structure depending on the products stored.
Each level can be designed for manual picking and equipped with walkways, staircases, guardrails, toe boards, and other safety components. This allows operators to access products at different heights without relying entirely on forklifts.
The modular design also makes it possible to expand or reconfigure sections of the shelving system as inventory requirements change. Multi-Tier Shelving Racking can be used as a standalone system or integrated with workstations, conveyors, bins, carton flow shelving, and other warehouse equipment.
Key Benefits
Maximizes vertical warehouse space utilization
Creates multiple storage levels within the same floor area
Ideal for high-SKU and manually picked inventory
Improves organization of small and medium-sized products
Adjustable shelving levels for flexible storage configurations
Efficient use of warehouse height
Walkways and access equipment can be customized
Modular structure for future expansion
Compatible with bins, cartons, and storage accessories
Heavy-duty steel construction for long-term industrial use
Multi-Tier Shelving Racking Specifications
Load Capacity
Shelf load capacity typically ranges from 100 kg to 800 kg per level, depending on shelf dimensions, structural design, panel type, and configuration. Customized heavy-duty shelving is available for applications requiring higher loads.
The load capacity of each elevated storage tier is also designed according to the overall structural load, walkway requirements, and warehouse floor conditions.
Rack Height
Standard multi-tier shelving systems generally range from 3,000 mm to 8,000 mm in overall height and can be customized according to warehouse clear height, sprinkler clearance, building structure, and required number of storage levels.
Bay Width
Common bay widths range from 900 mm to 2,000 mm. Customized widths are available according to product dimensions, shelf configuration, and warehouse layout.
Shelf Depth
Typical shelf depths range from 300 mm to 800 mm. Deeper configurations can be designed for larger cartons, containers, and industrial products.
Tier Levels
Multi-tier systems can typically be configured with 2 to 4 or more storage levels, depending on warehouse clear height, product dimensions, access requirements, and structural design.
Material
High-strength structural steel is used for upright frames, beams, shelving components, walkways, and supporting structures to provide reliable load-bearing performance and long service life.
Q235B steel is commonly used for standard applications, with Q355 grade available for selected heavy-load structural requirements.
Surface Finish
Durable electrostatic powder coating provides a smooth surface, corrosion resistance, and long-term protection for indoor warehouse applications.
Hot-dip galvanized components are also available for humid environments or projects requiring additional corrosion resistance.
Configuration Options
Two-Tier Shelving Racking
Multi-Level Shelving System
Multi-Tier Manual Picking Rack
Heavy Duty Multi-Tier Shelving
Multi-Tier Shelving with Walkways
Multi-Tier Shelving with Staircases
Multi-Tier Shelving with Guardrails
Multi-Tier Shelving with Carton Flow Modules
Customized Multi-Level Storage System
Compatibility
Compatible with:
Cartons and boxes
Plastic storage bins
Small parts and components
Spare parts
Tools and equipment
E-commerce products
Manual picking carts
Conveyor systems
Warehouse workstations
Picking platforms
Storage Management
Supports:
Manual Picking
Multi-SKU Storage
Vertical Space Utilization
SKU-Based Product Organization
High-Turnover Product Storage
Batch-Based Inventory Management
Material Handling Compatibility
Multi-Tier Shelving Racking is mainly designed for manual picking and can be combined with suitable warehouse handling equipment according to the product type and workflow.
Compatible with:
Picking carts
Hand trolleys
Platform carts
Material handling carts
Conveyor systems
Manual lifting equipment
Warehouse picking platforms
Standards
Designed and manufactured according to international warehouse shelving and storage system requirements. Structural design, shelf loads, walkway loads, guardrails, stairways, and other safety components can be customized according to project specifications and applicable local requirements.
Common Applications

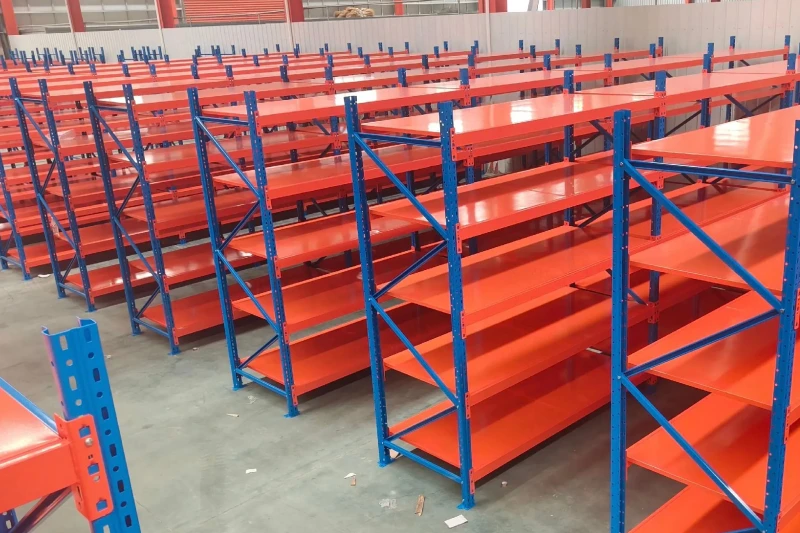

E-commerce Fulfillment Centers
Spare Parts Warehouses
Manufacturing Facilities
Automotive Parts Storage
Retail Distribution Centers
General Warehouses
Archive & Document Storage
Hardware Warehouses
Maintenance Storage Areas
High-SKU Order Picking Facilities
Multi-Tier Shelving Racking – FAQ
What is multi-tier shelving racking used for?
Multi-Tier Shelving Racking is used to create multiple storage levels within the same warehouse footprint. It is particularly suitable for warehouses with high SKU counts and manually picked products such as cartons, spare parts, components, tools, and e-commerce inventory.
How does multi-tier shelving increase warehouse storage capacity?
Instead of using only the floor area for storage, multi-tier shelving makes use of the available vertical warehouse height by adding additional storage levels. This can create significantly more usable storage space without expanding the building footprint.
How many levels can a multi-tier shelving system have?
The number of levels depends on warehouse clear height, product dimensions, access requirements, fire protection, and structural design. Two to four storage tiers are common, while taller customized systems can be designed for suitable warehouse environments.
Is multi-tier shelving suitable for manual picking?
Yes. Multi-Tier Shelving Racking is primarily designed for manual picking operations. Walkways, stairways, handrails, and other access components can be incorporated to allow operators to safely access products on different levels.
Can multi-tier shelving racking be customized?
Yes. Ouglon provides customized Multi-Tier Shelving Racking based on warehouse dimensions, clear height, product size, shelf load, number of storage levels, walkway requirements, and picking processes. The shelving structure and accessories can be configured for individual projects.
Why Choose Ouglon Multi-Tier Shelving Racking
Ouglon specializes in manufacturing industrial shelving and warehouse storage systems for global customers. As a professional Multi-Tier Shelving Racking manufacturer in China, we provide customized multi-level storage systems designed to improve vertical space utilization and support efficient manual picking operations.
Our multi-tier shelving systems are manufactured using quality steel materials and controlled production processes to provide stable structures, reliable load performance, and long service life. We can customize rack height, shelf dimensions, number of levels, walkways, staircases, guardrails, and supporting structures according to warehouse requirements.
We also provide OEM/ODM manufacturing, engineering support, warehouse layout optimization, technical assistance, and worldwide shipping services.
Need to make better use of your warehouse height? Contact our engineering team for a customized Multi-Tier Shelving Racking proposal.
