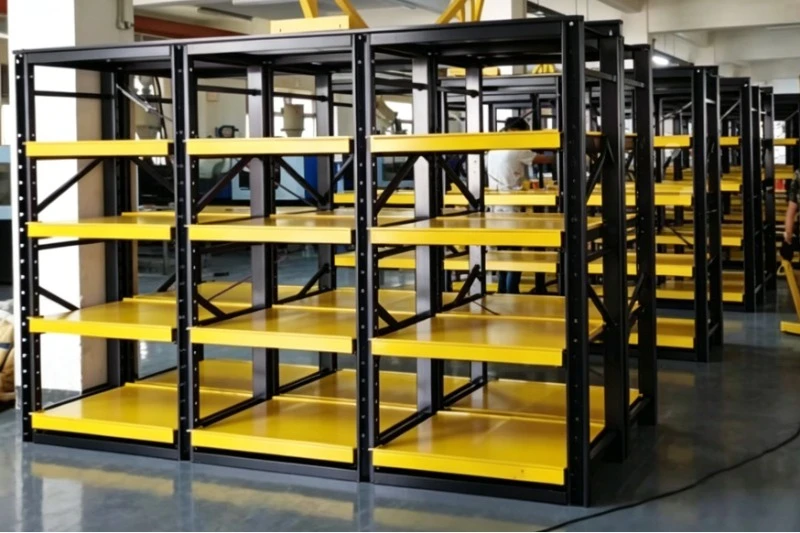

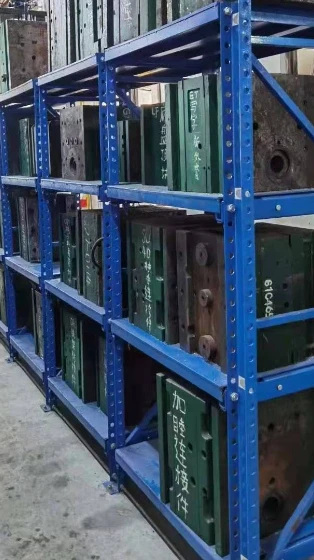

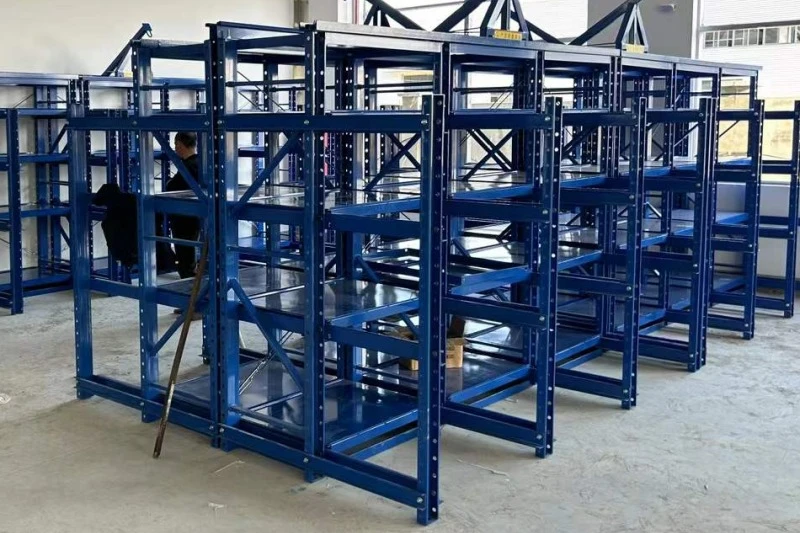

Mold & Die Rack
Mold & Die Rack is a heavy-duty storage system specially designed for molds, dies, tooling, and other heavy metal components that require organized storage and easy manual handling. With a reinforced steel structure and adjustable storage levels, the system provides a safe and practical way to store injection molds, stamping dies, machine tools, and production tooling.
Unlike conventional pallet racking, Mold & Die Rack is designed around the dimensions, weight, and handling requirements of molds and dies. The open front and adjustable loading levels make it easier to position, inspect, and retrieve individual molds without moving other stored items.
Ideal for manufacturing plants, mold workshops, automotive component factories, and tool rooms, Mold & Die Rack helps improve storage organization while making better use of vertical warehouse space.
As a professional Mold & Die Rack manufacturer in China, Ouglon provides customized heavy-duty storage systems based on mold dimensions, load capacity, warehouse layout, and handling equipment.
Configuration & Flexibility
Our Mold & Die Rack systems are manufactured with reinforced steel uprights, beams, supports, and storage levels designed to handle heavy molds and dies.
The modular structure allows storage height, bay width, shelf depth, and the number of storage levels to be customized according to individual mold dimensions and load requirements. Each storage level can be configured to accommodate different mold sizes, making the system suitable for mixed tooling inventories.
Depending on the application, the rack can be equipped with sliding drawer-type trays, roller-supported storage levels, or fixed steel shelves. These configurations help operators load and retrieve heavy molds more efficiently while reducing unnecessary manual handling.
Single-sided and double-sided layouts are available, allowing the system to be installed along walls or arranged in central storage rows. Additional bays can be connected as tooling inventory expands.
Key Benefits
Designed specifically for heavy molds, dies, and tooling
High load capacity for industrial manufacturing applications
Adjustable storage levels for different mold sizes
Improved access to individual molds and dies
Sliding or roller-supported storage options available
Better organization of tooling and production equipment
Efficient use of vertical warehouse space
Modular design for easy expansion
Heavy-duty steel construction for long service life
Suitable for workshops, tool rooms, and manufacturing facilities
Mold & Die Rack Specifications
Load Capacity
Storage level capacity typically ranges from 500 kg to 3,000 kg or more per level, depending on rack dimensions, structural design, tray configuration, and mold weight. Heavy-duty customized systems are available for applications requiring higher load capacities.

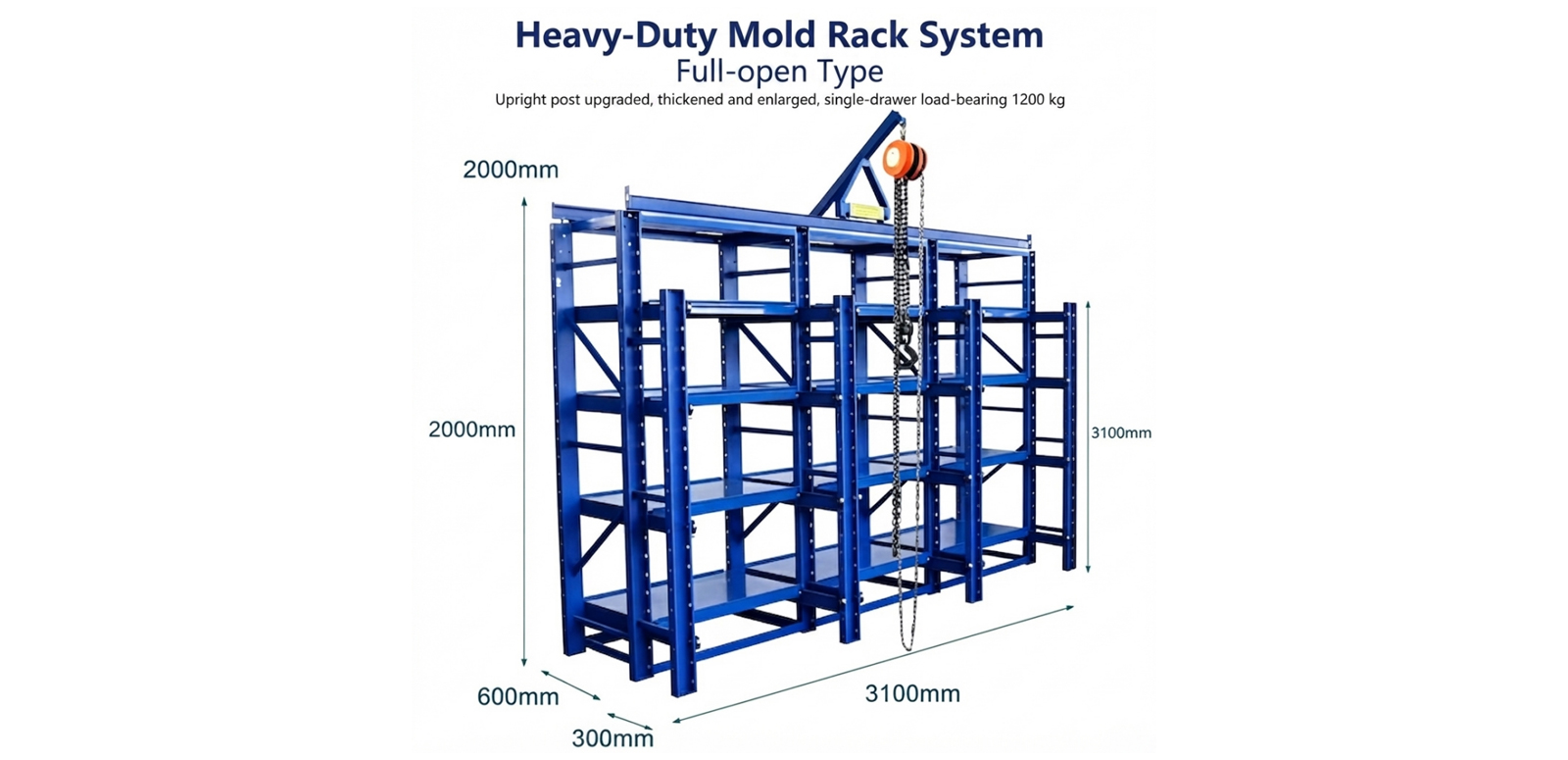

Rack Height
Standard rack heights generally range from 1,800 mm to 5,000 mm and can be customized according to warehouse clear height, mold dimensions, lifting equipment, and storage requirements.
Bay Width
Common bay widths range from 900 mm to 2,500 mm. Customized widths are available according to mold size, tray dimensions, and storage layout.
Shelf Depth
Typical storage depths range from 500 mm to 1,200 mm. The depth can be customized according to the dimensions of molds, dies, tooling, and other stored components.
Storage Levels
The number and spacing of storage levels can be customized according to mold height and rack dimensions. Adjustable levels allow different mold sizes to be stored within the same rack system.
Material
High-strength structural steel is used for uprights, beams, supports, trays, and other load-bearing components to provide reliable structural performance for heavy industrial storage.
Q235B steel is commonly used, while Q355 grade and other material specifications are available for selected heavy-duty applications.
Surface Finish
Durable electrostatic powder coating provides corrosion resistance and long-term protection for indoor manufacturing and warehouse environments.
Hot-dip galvanized treatment is also available for applications requiring increased corrosion resistance or use in humid environments.
Configuration Options
Heavy Duty Mold & Die Rack
Mold Storage Rack with Sliding Drawers

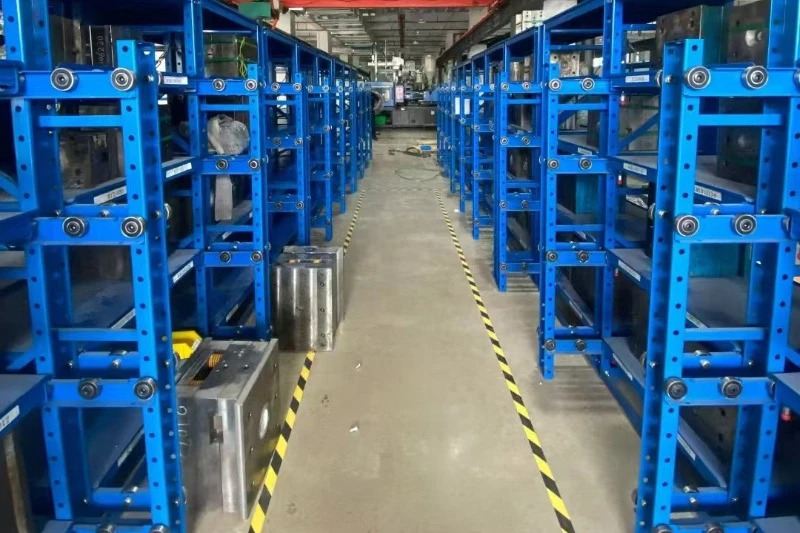

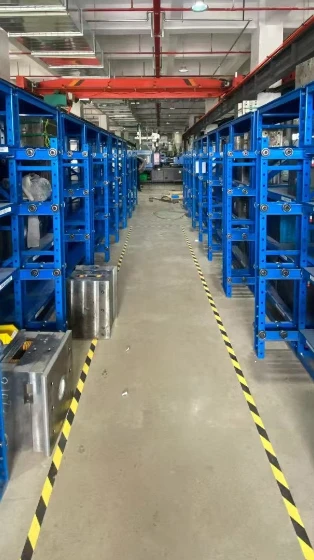

Mold Rack with Roller-Supported Trays
Adjustable Mold Storage Rack
Single-Sided Mold Rack
Double-Sided Mold Rack
Multi-Bay Mold Storage System
Customized Mold Rack with Handling Accessories
Compatibility
Compatible with:
Injection molds
Stamping dies
Die-casting molds
Plastic molds
Automotive molds and tooling
Machine tools
Production fixtures
Steel tooling components
Manual handling equipment
Overhead cranes
Storage Management
Supports:
Mold Classification by Type
Tooling Storage by Size
Production Mold Management
Spare Tooling Storage
SKU and Model-Based Organization
Individual Mold Identification
Material Handling Compatibility
Mold & Die Rack can be configured to work with different material handling methods according to mold weight and warehouse operations.
Compatible with:
Overhead cranes
Hoists
Forklifts
Mold lifting equipment
Pallet trucks for suitable configurations
Manual handling tools
Customized mold handling equipment
Standards
Designed and manufactured according to international industrial storage and racking safety requirements. Load capacity, structural design, drawer systems, and safety features can be customized according to project specifications and local regulations.
Common Applications
Mold Manufacturing Plants
Injection Molding Workshops
Stamping Die Storage
Automotive Manufacturing Facilities
Tool Rooms
Die-Casting Factories
Machinery Manufacturing Plants
Industrial Maintenance Workshops
Production Tooling Warehouses
Mold & Die Rack – FAQ
What is a mold and die rack used for?
Mold & Die Rack is designed for storing heavy molds, dies, tooling, and production fixtures in an organized and accessible way. It is widely used in injection molding, stamping, automotive, die-casting, and other manufacturing industries.
What is the difference between mold rack and ordinary industrial shelving?
Mold & Die Rack is specifically engineered for much heavier loads and larger tooling components. It typically uses reinforced structures, deeper storage levels, and optional sliding or roller-supported trays to make heavy molds easier to load and retrieve.
How much weight can a mold and die rack hold?
Load capacity depends on rack structure, storage level dimensions, tray configuration, and mold weight. Typical systems support approximately 500 kg to 3,000 kg or more per storage level, with customized heavy-duty designs available for higher loads.
Can mold racks be equipped with sliding drawers?
Yes. Sliding drawer or roller-supported storage levels can be added to make heavy molds easier to access. This configuration is especially useful when molds are frequently removed for maintenance, production changes, or inspection.
Can mold and die racks be customized for different molds?
Yes. Ouglon provides customized Mold & Die Rack systems based on mold dimensions, weight, quantity, handling method, and warehouse layout. Rack height, width, depth, storage levels, loading capacity, and drawer configurations can all be customized.
Why Choose Ouglon Mold & Die Rack
Ouglon specializes in manufacturing heavy-duty warehouse storage systems for global industrial applications. As a professional Mold & Die Rack manufacturer in China, we provide customized storage solutions for molds, dies, tooling, and other heavy production components.
Our Mold & Die Racks are manufactured using quality steel materials and controlled production processes to provide stable structures, reliable load performance, and long service life. We can customize rack dimensions, loading capacity, storage levels, drawer systems, and handling configurations according to specific mold requirements.
We also provide OEM/ODM manufacturing, engineering support, warehouse layout optimization, and worldwide shipping services.
Need a customized mold and die storage system? Contact our engineering team for a free design proposal.
