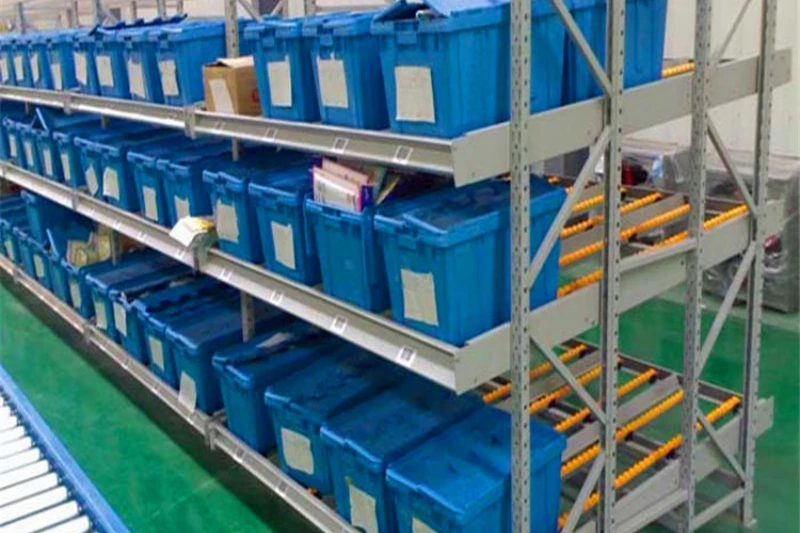

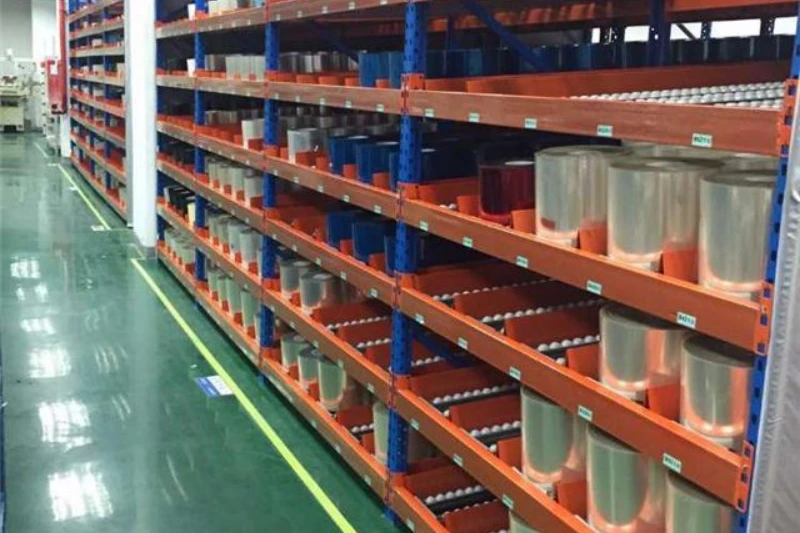

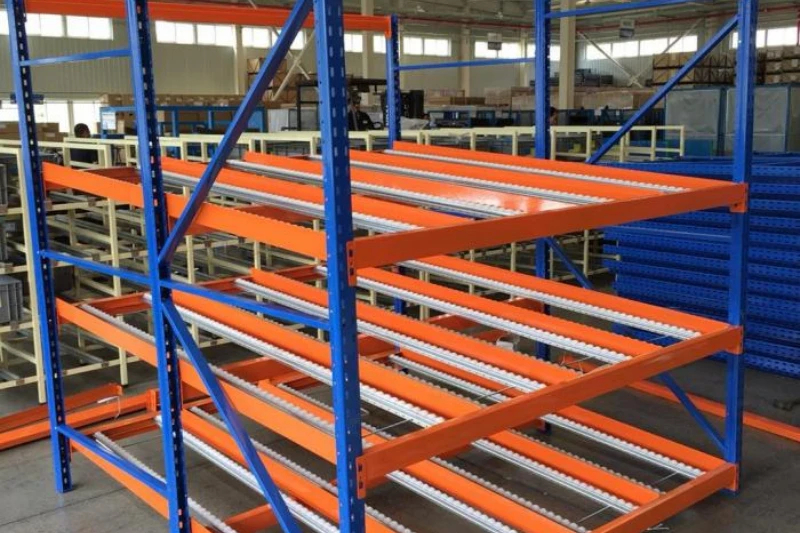

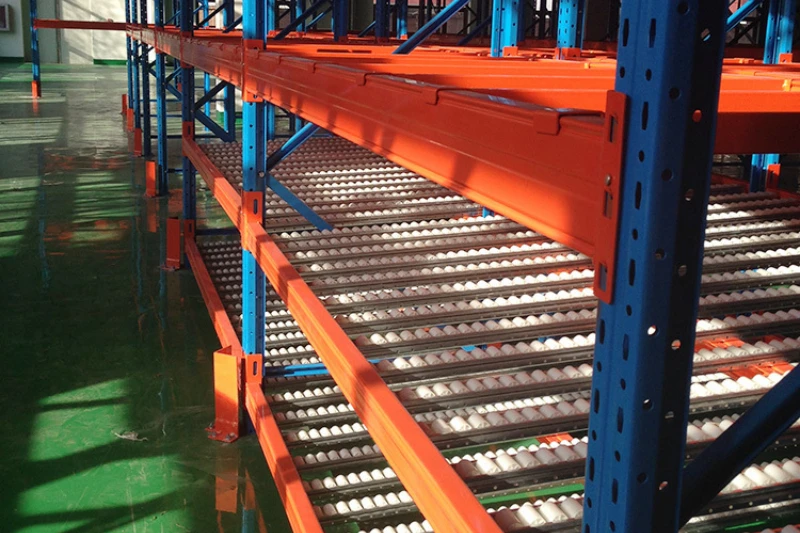

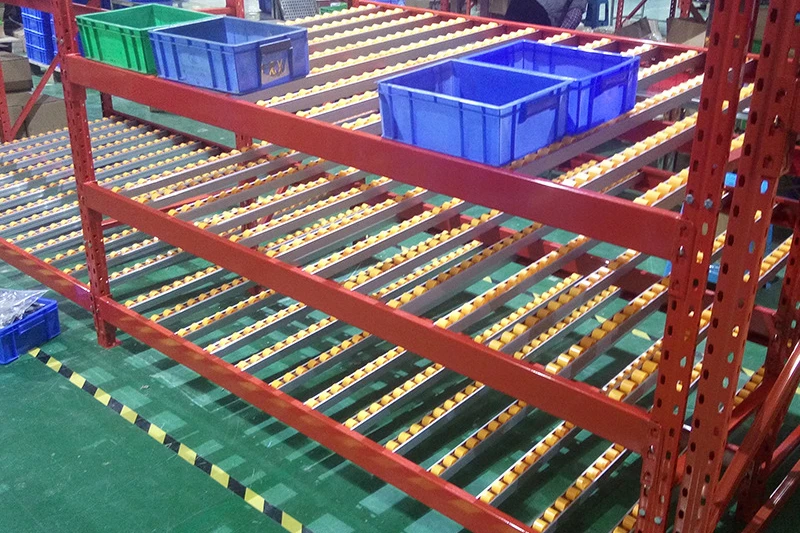

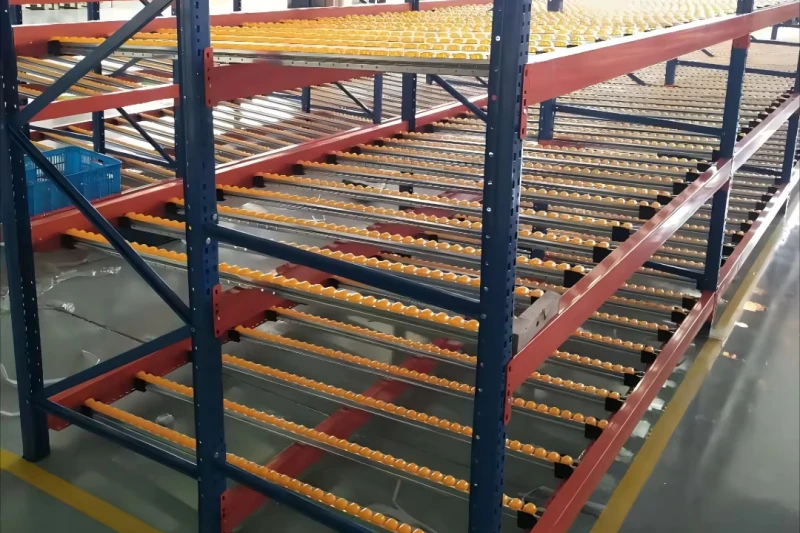

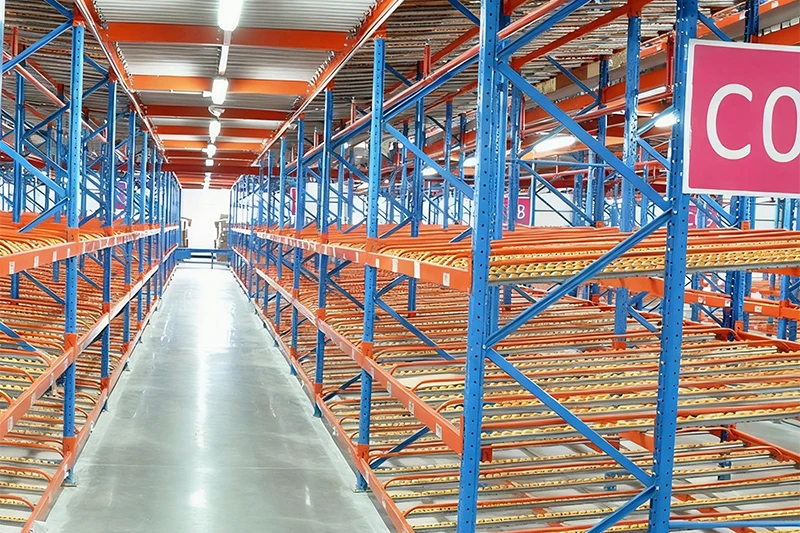

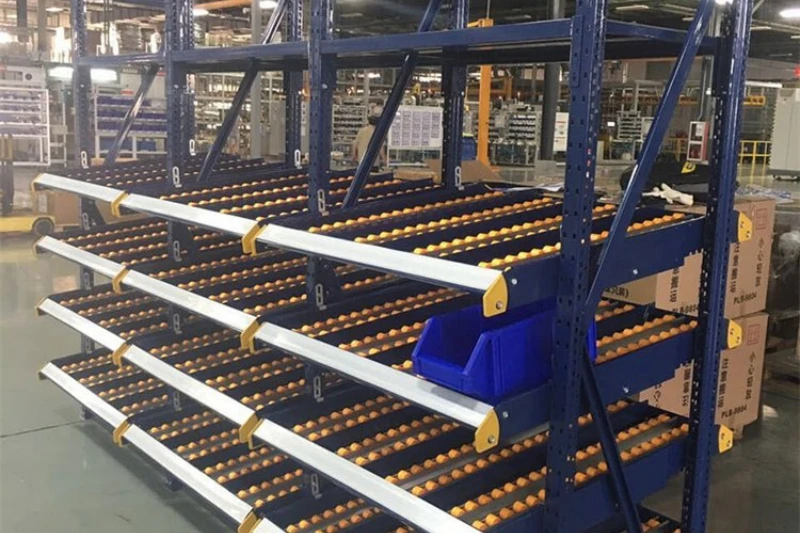

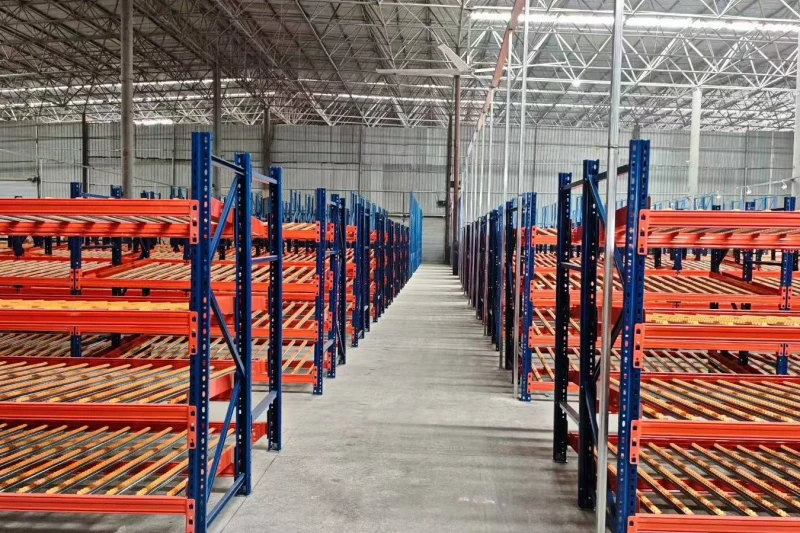

Carton Flow Shelving
Carton Flow Shelving is a dynamic warehouse storage system designed for fast-moving cartons, boxes, totes, and small-to-medium-sized products that require efficient manual picking. By using slightly inclined roller lanes, cartons move from the loading side toward the picking side, helping operators maintain an organized stock flow and reduce the time needed to locate and replenish products.
Unlike conventional static shelving, Carton Flow Shelving separates the loading and picking sides, making it easier to organize inventory and maintain consistent product rotation. This makes the system particularly suitable for warehouses with high SKU counts, frequent order picking, and first-in-first-out inventory requirements.
Carton Flow Shelving is widely used in e-commerce fulfillment centers, distribution warehouses, manufacturing plants, spare parts warehouses, retail backrooms, and order picking areas.
As a professional carton flow shelving manufacturer in China, Ouglon provides customized systems based on carton dimensions, product weight, picking frequency, storage capacity, and warehouse layout.
Configuration & Flexibility
Our Carton Flow Shelving systems combine heavy-duty steel shelving structures with inclined roller tracks or wheel lanes that allow cartons to move smoothly by gravity from the replenishment side to the picking side.
The modular structure allows shelf height, bay width, shelf depth, roller lane length, and the number of levels to be customized according to different products and warehouse layouts. Different roller types and lane configurations can be selected based on carton size, product weight, and required flow speed.
The front picking position remains accessible while stock is continuously replenished from the rear, helping separate replenishment operations from order picking activities. This can reduce interference between warehouse workers and improve picking efficiency in high-turnover environments.
Carton Flow Shelving can be installed as a standalone shelving system or integrated with workstations, bins, picking carts, conveyors, and other warehouse equipment.
Key Benefits
Gravity-fed carton movement for faster order picking
Supports FIFO inventory rotation
Separate loading and picking sides
Improved organization for high-SKU warehouses
Easy access to cartons and individual products
Reduces walking and searching time during picking
Adjustable shelf and roller lane configurations
Suitable for high-turnover inventory
Modular design for easy expansion and reconfiguration
Heavy-duty steel construction for industrial warehouse use
Carton Flow Shelving Specifications
Load Capacity
Shelf or flow lane capacity typically ranges from 100 kg to 500 kg per level, depending on shelf dimensions, roller configuration, product weight, and rack structure. Customized heavy-duty designs are available for higher load requirements.
Rack Height
Standard rack heights generally range from 1,500 mm to 4,500 mm and can be customized according to warehouse clear height, picking requirements, and product dimensions.
Bay Width
Common bay widths range from 900 mm to 2,000 mm. Customized widths are available according to carton dimensions, number of lanes, and available warehouse space.
Shelf Depth
Typical shelf depths range from 600 mm to 2,000 mm depending on the number of cartons stored in each flow lane. The depth can be customized according to carton size, inventory quantity, and replenishment frequency.
Flow Lane Length
Flow lane length can be customized according to product quantity, carton dimensions, and required storage depth. Roller or wheel track configurations can be selected to provide stable movement for different product loads.
Material
High-quality structural steel is used for upright frames, beams, supports, and shelving components to provide reliable structural performance and long service life.
Q235B steel is commonly used for standard applications, with Q355 grade available for selected heavy-duty requirements.
Surface Finish
Durable electrostatic powder coating provides a smooth finish, corrosion resistance, and long-term protection for indoor warehouse and distribution applications.
Galvanized components are also available for environments requiring additional corrosion protection.
Configuration Options
Standard Carton Flow Shelving
Heavy Duty Carton Flow Shelving
Gravity Roller Flow Shelving
Wheel Track Flow Shelving
FIFO Carton Flow Storage
Multi-Level Carton Flow Shelving
Carton Flow Picking Rack with Workstation
Carton Flow Shelving with Bins and Dividers
Customized Flow Lane Configuration
Compatibility
Compatible with:
Cartons and boxes
Plastic totes and containers
Storage bins
Small parts and components
E-commerce order picking
Spare parts
Manual picking carts
Conveyor systems
Warehouse workstations
Inventory Management
Supports:
FIFO (First-In, First-Out)
Batch-Based Inventory Rotation
SKU-Based Storage
High-Turnover Product Picking
Material Handling Compatibility
Carton Flow Shelving is mainly designed for manual picking and replenishment operations. It can be combined with different warehouse handling equipment depending on the product weight and warehouse workflow.
Compatible with:
Picking carts
Platform carts
Hand trolleys
Manual replenishment equipment
Conveyor systems
Warehouse workstations
Standards
Designed and manufactured according to international warehouse shelving and storage system requirements. Structural dimensions, shelf loads, roller configurations, and safety features can be customized according to project specifications and local requirements.
Common Applications
E-commerce Fulfillment Centers
Order Picking Warehouses
3PL Distribution Centers
Manufacturing Parts Warehouses
Automotive Spare Parts Storage
Retail Distribution Centers
Pharmaceutical Product Storage
Food & Beverage Distribution
High-Turnover Inventory Warehouses
Carton Flow Shelving – FAQ
What is carton flow shelving used for?
Carton Flow Shelving is used for storing and picking cartons, boxes, totes, and small-to-medium-sized products. It is particularly suitable for warehouses with high SKU counts, frequent order picking, and fast inventory turnover.
How does carton flow shelving work?
Carton Flow Shelving uses inclined rollers or wheel tracks to allow cartons to move by gravity from the replenishment side toward the picking side. When an item is removed from the front, the next carton moves forward automatically.
Is carton flow shelving suitable for FIFO inventory management?
Yes. Carton Flow Shelving is well suited for FIFO inventory management because products are loaded from one side and picked from the opposite side. This arrangement helps maintain a consistent product rotation sequence.
What types of products can be stored on carton flow shelving?
It can store cartons, boxes, plastic totes, bins, spare parts, components, packaged goods, and other products suitable for manual picking. Roller and lane specifications can be selected according to product dimensions and weight.
Can carton flow shelving be customized for different warehouses?
Yes. Ouglon provides customized Carton Flow Shelving based on warehouse dimensions, carton size, product weight, storage depth, picking frequency, and workflow. Shelf height, bay width, lane depth, roller configuration, loading capacity, and accessories can all be customized.
Why Choose Ouglon Carton Flow Shelving
Ouglon specializes in manufacturing industrial shelving and warehouse storage systems for global customers. As a professional Carton Flow Shelving manufacturer in China, we provide customized gravity-flow storage systems designed for efficient order picking, inventory organization, and warehouse space utilization.
Our carton flow shelving systems are manufactured using quality steel materials and reliable roller components to provide stable structures and smooth product movement. We can customize shelf dimensions, flow lane depth, roller types, loading capacity, number of levels, and workstation layouts according to specific warehouse requirements.
We also provide OEM/ODM manufacturing, engineering support, warehouse layout optimization, and worldwide shipping services.
Need a faster picking and replenishment system? Contact our engineering team for a customized Carton Flow Shelving proposal.
