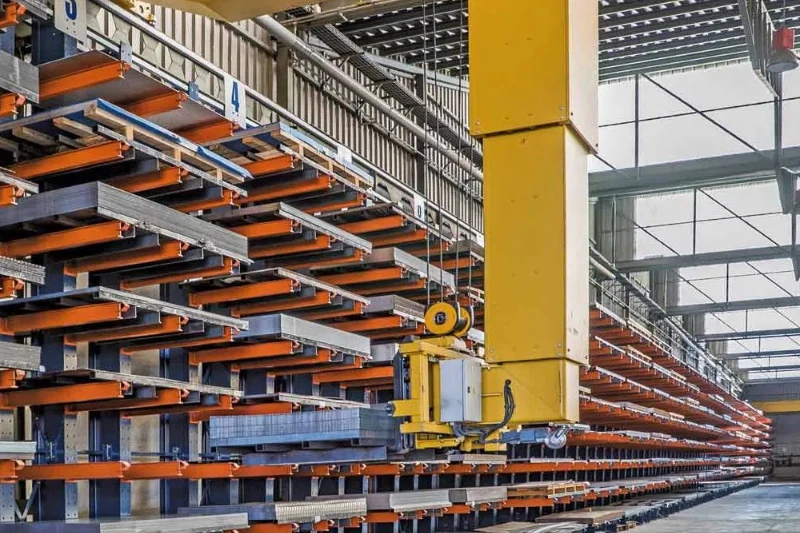

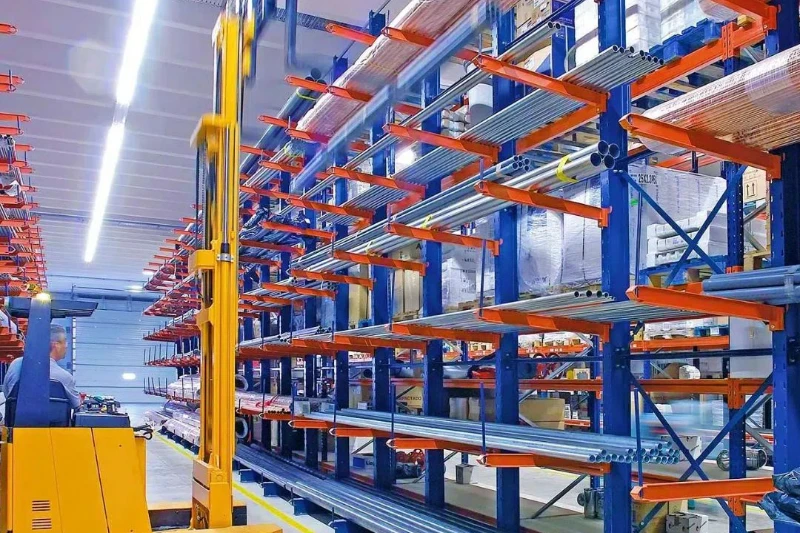

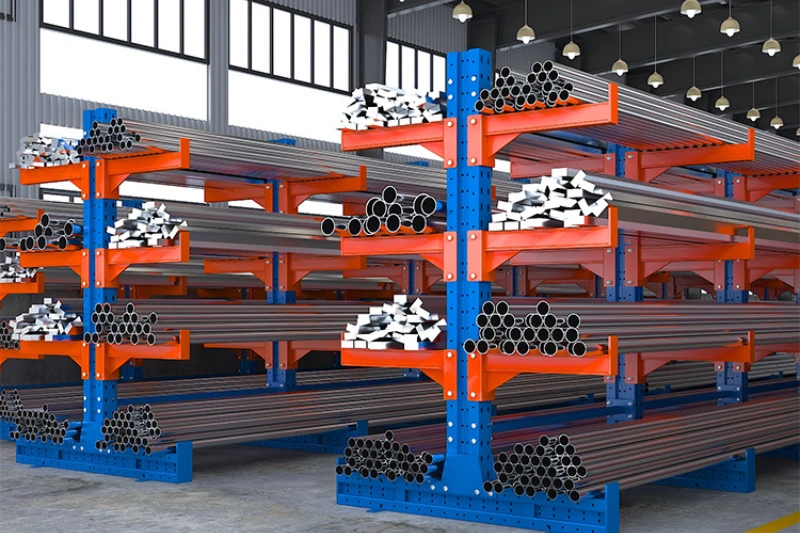

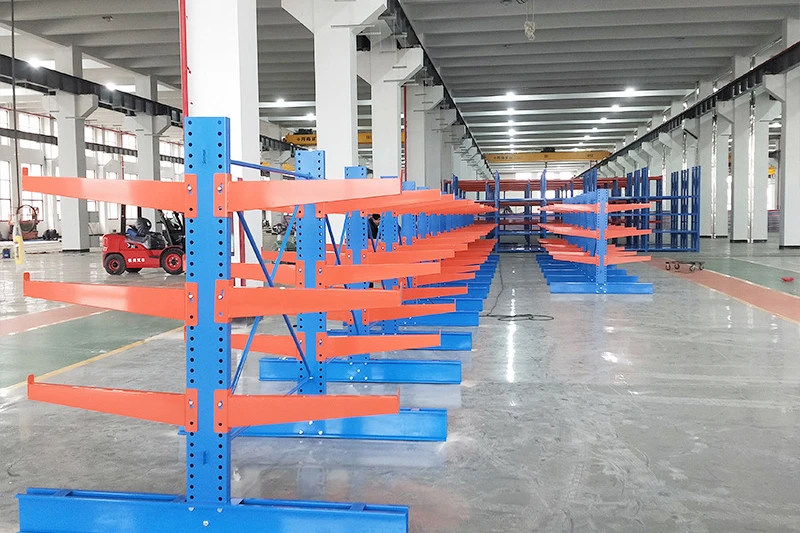

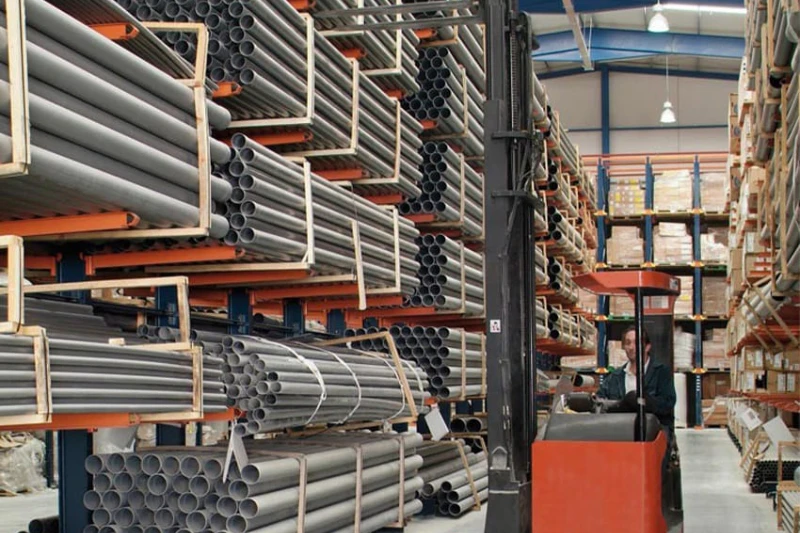

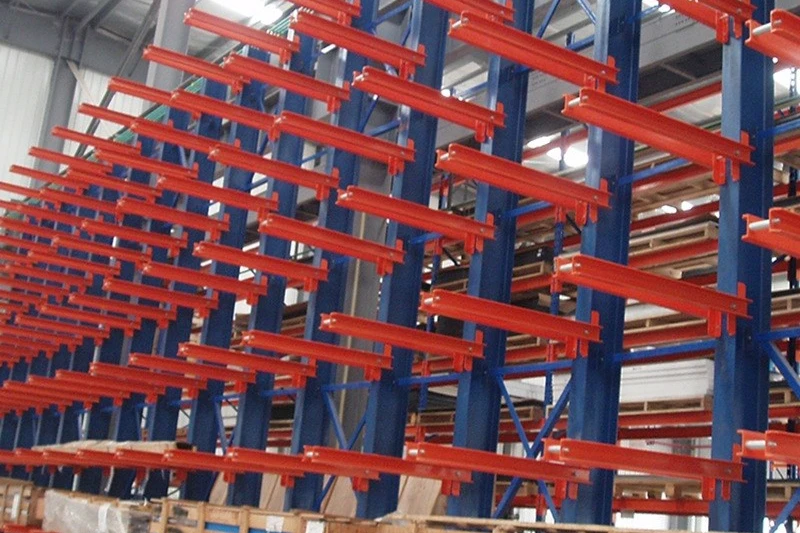

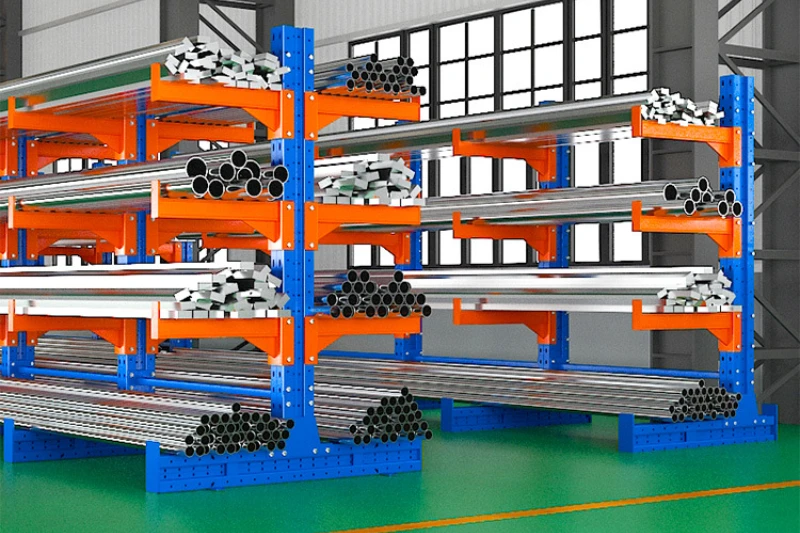

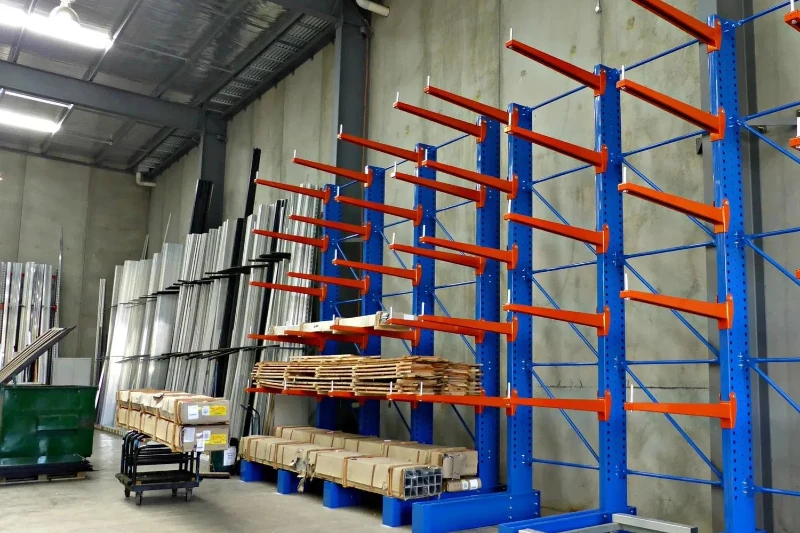

Cantilever Racking System

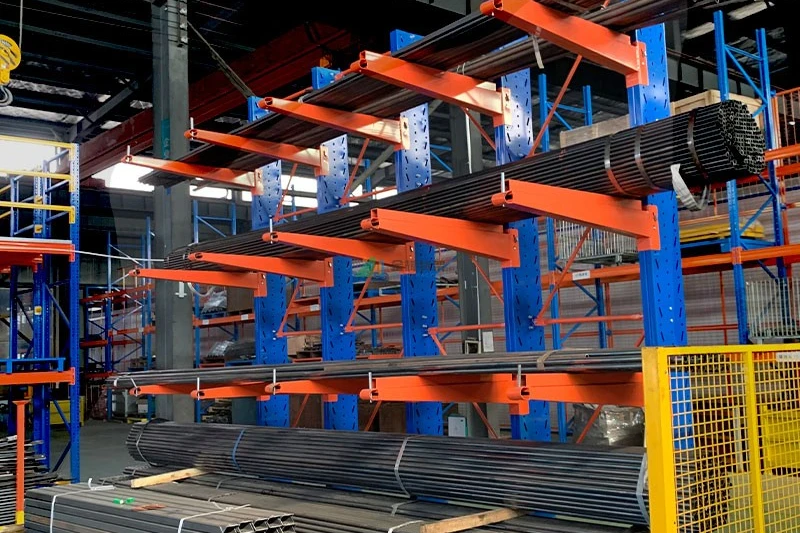

Cantilever Racking System is a specialized heavy-duty storage solution designed for storing long, oversized, and irregular-shaped materials that cannot be efficiently stored on traditional pallet racking systems. With an open-front design and no front columns blocking access, cantilever racks provide convenient loading and unloading for products such as steel pipes, timber, aluminum profiles, furniture materials, and other long-length goods.
Designed for industrial warehouses, manufacturing facilities, and material distribution centers, Cantilever Racking offers flexible storage configurations with excellent accessibility and high load capacity. The adjustable arm levels allow the system to accommodate different product sizes, weights, and storage requirements.
As a professional cantilever racking manufacturer, Ouglon provides customized heavy-duty cantilever rack solutions based on warehouse layout, material dimensions, load requirements, and operational processes.
Configuration & Flexibility

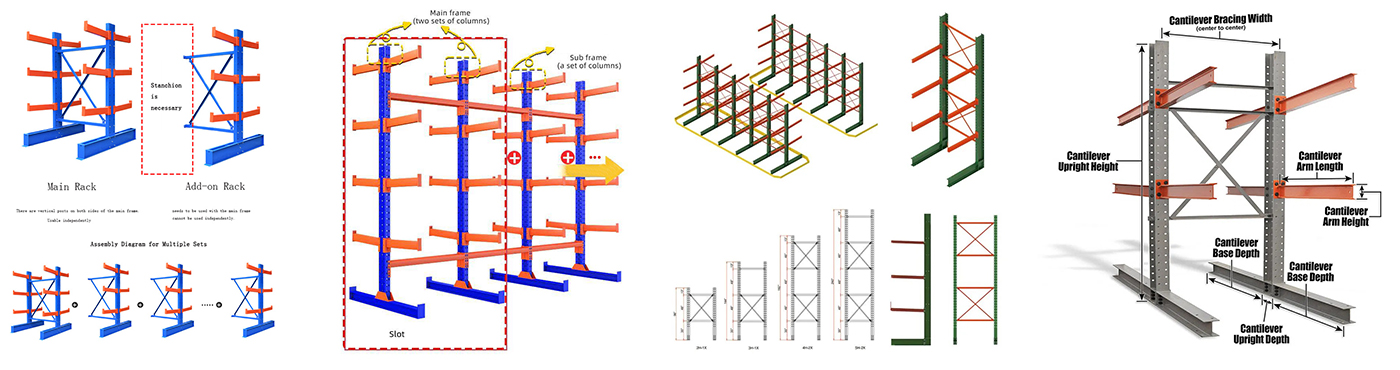

Our Cantilever Racking Systems are manufactured with heavy-duty steel columns, bases, arms, and bracing components to provide stable support for long and bulky materials.
The modular design allows the height, arm length, column spacing, and load capacity to be customized according to different storage applications. Single-sided and double-sided configurations are available to maximize warehouse space utilization and improve storage efficiency.
The cantilever arms can be easily adjusted to different levels, allowing flexible storage for materials with various lengths, heights, and weights. Optional accessories such as arm stops, decking panels, and protective components are available for specific applications.
This cost-effective warehouse storage solution is widely used in manufacturing, metal processing, construction materials, lumber storage, furniture production, and industrial distribution industries.
Key Benefits
Open-front design for easy loading and unloading of long materials
Ideal for oversized, irregular, and heavy-duty products
Adjustable arm levels for flexible storage configurations
High load capacity for industrial warehouse applications
Single-sided and double-sided layouts available
Better accessibility compared with traditional storage systems
Optimized vertical warehouse space utilization
Heavy-duty steel construction for long service life
Customized dimensions available for different storage requirements
Cantilever Racking System Specifications
Load Capacity
Each cantilever arm typically supports 200 kg to 1,500 kg or more, depending on arm length, column design, material weight, and rack configuration. Heavy-duty customized systems are available for storing extremely heavy and oversized materials.
Rack Height
Standard cantilever rack heights generally range from 2,000 mm to 8,000 mm and can be customized according to warehouse clear height, lifting equipment, and storage requirements.
Arm Length
Standard arm lengths range from 500 mm to 1,800 mm. Customized arm lengths are available based on the dimensions and weight distribution of stored materials.
Column Spacing
Column spacing can be customized according to material length, load requirements, and warehouse layout. Proper spacing design ensures structural stability and efficient storage capacity.
Material
High-strength structural steel (Q235B / Q355 grade optional) is used for columns, bases, arms, and bracing components, providing excellent load-bearing performance for industrial applications.
Surface Finish
Durable electrostatic powder coating finish provides corrosion resistance and a long service life for indoor warehouse environments. Hot-dip galvanized finish is available for outdoor storage applications or humid environments requiring additional protection.
Configuration Options
Single-Sided Cantilever Racking
Double-Sided Cantilever Racking
Heavy Duty Cantilever Storage Rack
Light / Medium Duty Cantilever Rack
Adjustable Arm Cantilever System
Cantilever Rack with Steel Decking Panels
Customized Height and Arm Length Design
Compatibility
Compatible with:
Forklifts
Reach trucks
Overhead cranes
Manual handling equipment
Steel pipes
Timber and lumber
Aluminum profiles
Metal sheets
Furniture materials
Construction materials
Storage Management
Supports:
Long Material Storage
Oversized Product Storage
Heavy Load Storage
Flexible Material Classification
Material Handling Compatibility
Cantilever Racking Systems are designed to work with different material handling equipment depending on warehouse operations and stored products.
Compatible with:
Counterbalance forklifts
Side-loading forklifts
Overhead cranes
Manual handling tools
Customized handling solutions
Standards
Designed and manufactured according to international warehouse racking safety requirements, including FEM and EN standards. Customized engineering designs and technical documentation are available according to project specifications and regional requirements.
Common Applications
Steel Pipe Storage Warehouses
Timber & Lumber Storage Facilities
Metal Processing Plants
Construction Material Warehouses
Furniture Manufacturing Facilities
Automotive Component Storage
Aluminum Profile Storage
Industrial Distribution Centers
Cantilever Racking System – FAQ
What is cantilever racking used for?
Cantilever Racking is mainly used for storing long, bulky, and irregular-shaped materials that are difficult to store with traditional pallet racks. Common applications include steel pipes, timber, aluminum profiles, furniture materials, and construction products.
What is the difference between cantilever racking and pallet racking?
The main difference is the storage design. Pallet racking uses front and rear upright frames to support palletized goods, while cantilever racking uses vertical columns and horizontal arms, creating an open storage area ideal for long-length products.
How much weight can cantilever racking hold?
The load capacity depends on column size, arm length, material weight, and rack configuration. Standard systems typically support 200 kg to 1,500 kg or more per arm, while heavy-duty designs can be customized for higher load requirements.
Can cantilever racking be customized for different materials?
Yes. Cantilever racks are highly customizable. The rack height, arm length, column spacing, number of levels, and load capacity can be adjusted according to stored materials and warehouse conditions.
Is cantilever racking suitable for outdoor storage?
Yes. Cantilever Racking can be designed for outdoor applications by using hot-dip galvanized surface treatment and weather-resistant components. This makes it suitable for storing construction materials, steel products, and other outdoor goods.
Why Choose Ouglon Cantilever Racking System
Ouglon specializes in manufacturing heavy-duty warehouse storage systems for global industrial applications. As a professional cantilever racking manufacturer in China, we provide customized storage solutions for long, bulky, and irregular-shaped materials.
Our Cantilever Racking Systems are manufactured using high-quality steel materials and advanced production processes to ensure structural stability, load performance, and long-term reliability. We provide customized rack dimensions, OEM/ODM manufacturing, engineering support, warehouse layout optimization, and worldwide shipping services.
Need a customized cantilever storage solution? Contact our engineering team for a free design proposal.
